24036EAW34C4

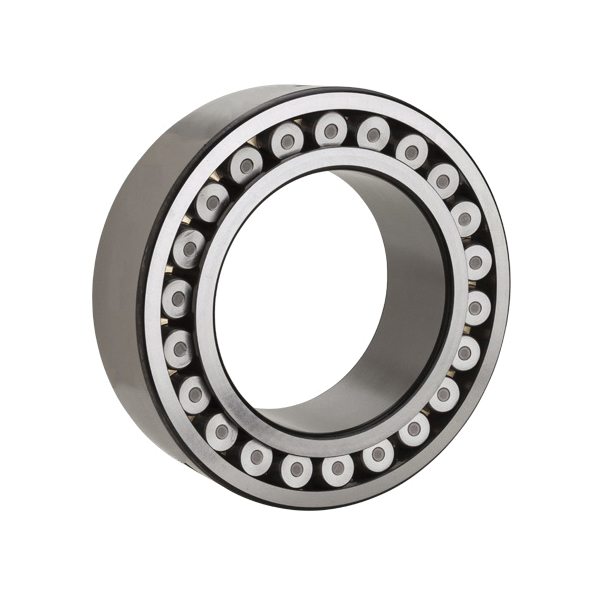

NTN 24036EAW34C4 ULTAGE® 240 Type EA Spherical Roller Bearing, 180 mm Dia Bore, 280 mm OD, 2 Rows, 100 mm W, 1450000 N Load
- CP#:
- Item#: 24036EAW34C4
- Mfr#: 24036EAW34C4
- UPC: 3413520596828
- Spherical roller bearings possess the same self-aligning properties as other self-aligning bearings
- Adapters are used for installation of bearings with tapered bore on cylindrical shafts
- Basic dynamic load rating up to 65% greater than the NTN conventional design
- Basic static load rating up to 35% greater than the NTN conventional design
- Service life up to five times longer than the NTN conventional design
- The window-type pressed steel cage provides higher rigidity
- Compact, lightweight design
- Improved ease-of-use
- Window-type pressed steel cage
- C4 radial clearance greater than C3
- Pressed cage
- 1080000 N dynamic/1450000 N static
- Round bore
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherical roller bearings equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel shaped rolling elements, NTN spherical roller bearings are able to adjust center alignment to handle inclination of the axle or shaft. There are variety of bearing types that differ according to internal design. Spherical roller bearings include as type equipped with an inner ring with a tapered bore. The bearing can easily be mounted on a shaft by means of an adapter or withdrawal sleeve. The bearing is capable of supporting heavy loads, and is therefore often used in industrial machinery. When heavy axial load is applied to the bearing, the load on rollers of another row is disappeared, and can cause problems. Attention must therefore be paid to operating conditions.
NTN Spherical Roller Bearing, Type EA, Series: ULTAGE® 240, 180 mm Bore Dia, 280 mm Outside Dia, 2 Rows, 100 mm W, Open Closure, 1450000 N, Through Hardened Steel Bearing, Pressed Steel Cage, 1500 rpm Grease/2200 rpm Oil Maximum, -40 to 200 deg C
SPECIFICATIONS
| Series | : | ULTAGE® 240 |
| Bearing Material | : | Through Hardened Steel |
| Load Capacity | : | 1450000 N |
| Maximum Speed | : | 1500 rpm Grease/2200 rpm Oil |
| Outside Diameter | : | 280 mm |
| Number of Rows | : | 2 |
| Width | : | 100 mm |
