23060BL1W33

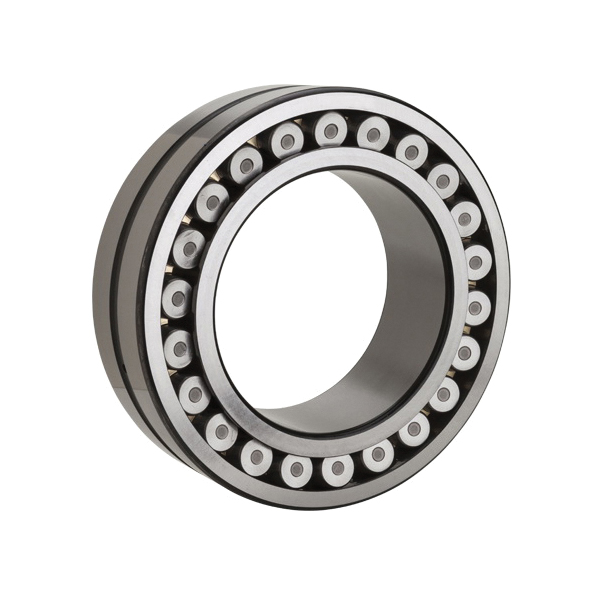

NTN 23060BL1W33 Spherical Roller Bearing With Oil Groove, 300 mm Dia Bore, 460 mm OD, 2 Rows, 118 mm W, 3550000 N Load
- CP#:
- Item#: 23060BL1D1
- Mfr#: 23060BL1W33
- UPC: 4547359521030
- Spherical roller bearings possess the same self-aligning properties as other self-aligning bearings
- Adapters are used for installation of bearings with tapered bore on cylindrical shafts
- CN radial clearance
- Machined cage
- 1890000 N dynamic/3550000 N static
- Round bore
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Spherical roller bearings equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel shaped rolling elements, NTN spherical roller bearings are able to adjust center alignment to handle inclination of the axle or shaft. There are variety of bearing types that differ according to internal design. Spherical roller bearings include as type equipped with an inner ring with a tapered bore. The bearing can easily be mounted on a shaft by means of an adapter or withdrawal sleeve. The bearing is capable of supporting heavy loads, and is therefore often used in industrial machinery. When heavy axial load is applied to the bearing, the load on rollers of another row is disappeared, and can cause problems. Attention must therefore be paid to operating conditions.
NTN Spherical Roller Bearing, Series: 230, 300 mm Bore Dia, 460 mm Outside Dia, 2 Rows, 118 mm W, Open Closure, 3550000 N, Through Hardened Steel Bearing, Machined Brass Cage, 720 rpm Grease/940 rpm Oil Maximum, -40 to 120 deg C
SPECIFICATIONS
| Series | : | 230 |
| Bearing Material | : | Through Hardened Steel |
| Load Capacity | : | 3550000 N |
| Maximum Speed | : | 720 rpm Grease/940 rpm Oil |
| Outside Diameter | : | 460 mm |
| Number of Rows | : | 2 |
| Width | : | 118 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/428/NTN_3201_Catalog.pdf -
VIDEO LINK
https://youtu.be/4rXPAd9xD3w
