07087

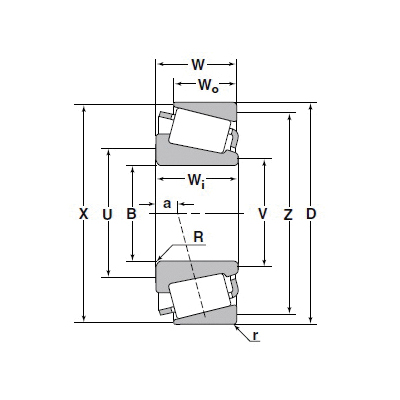

NTN 07087 Round Bore Cone, 22.225 mm Dia Bore, 14.26 mm W Cone, 1.3 mm Max Shaft Fillet Radius, 27900 N Load, For Use With J Series Single Row Tapered Roller Bearings
- CP#:
- Item#: 07087 NTN
- Mfr#: 07087
- 26000 N dynamic/27900 N static
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NTN Cone, Round Bore, 22.225 mm Bore, 14.26 mm Cone Width, 1.3 mm Maximum Shaft Fillet Radius, For Use With: J Series Single Row Tapered Roller Bearings, 27900 N Load, Case Carburized Steel Cage, -40 to 120 deg C
SPECIFICATIONS
| Cone Width | : | 14.26 mm |
| Load Capacity | : | 27900 N |
| Maximum Shaft Fillet Radius | : | 1.3 mm |
| Suitable For Use With | : | J Series Single Row Tapered Roller Bearings |
| Inside Diameter | : | 22.225 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/468/NTN_02474_Catalog.pdf
