- NOSHOK 625-30/150-1-1-8-8
625-30/150-1-1-8-8

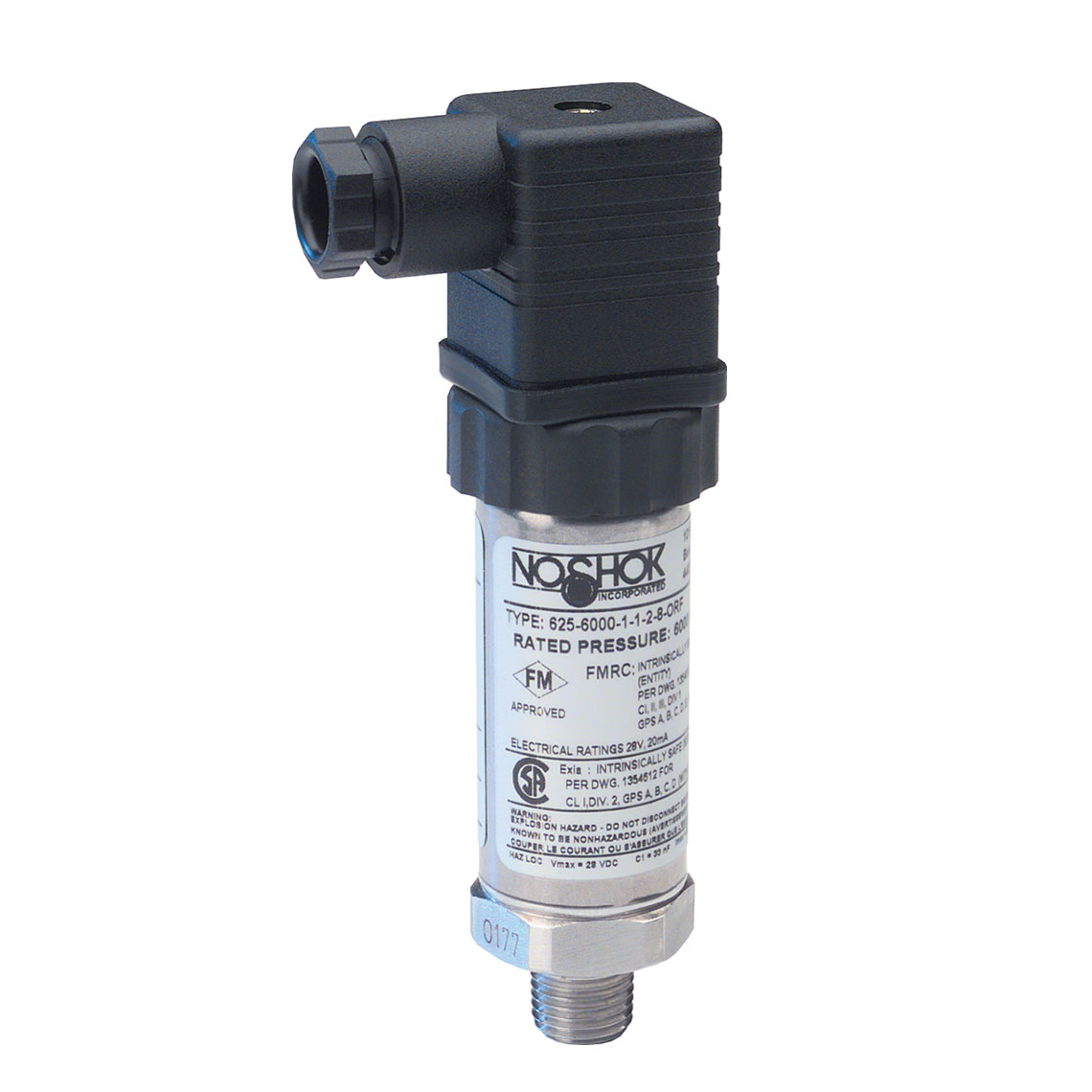

625/626 Series Intrinsically Safe Pressure Transmitter (625-30/150-1-1-8-8 NO SHOK)
- CP#:
- Item#: 625-30/150-1-1-8-8 NO SHOK
- Mfr#: 625-30/150-1-1-8-8
- Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Current output
- 316 and 14-4PH Stainless Steel wetted parts
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NOSHOK 625/626 Pressure Transmitter: -30 inHg to 150 psig, 0.25% Accuracy, 1/2" NPT Male, DIN EN 175301-803 Form A, 316/14-4PH Stainless Steel. Versatile for vapor recovery, vacuum, and compound pressure applications. Reliable current output technology.
-30 inHg to 150 psig, 0.25% Accuracy (Best Fit Straight Line (BFSL), 4 to 20 mA Output, 1/2" National Pipe Thread (NPT) Male Pressure Transmitter with DIN EN 175301-803 Form A Electrical Connection
SPECIFICATIONS
| Type | : | Safe Pressure Transmitter |
| Degree of Protection | : | IP65/IP67 |
| Housing Material | : | 316 Stainless Steel |
DOCUMENTS
-
User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/625-626-627-transmitters-user_manual.pdf
