2025

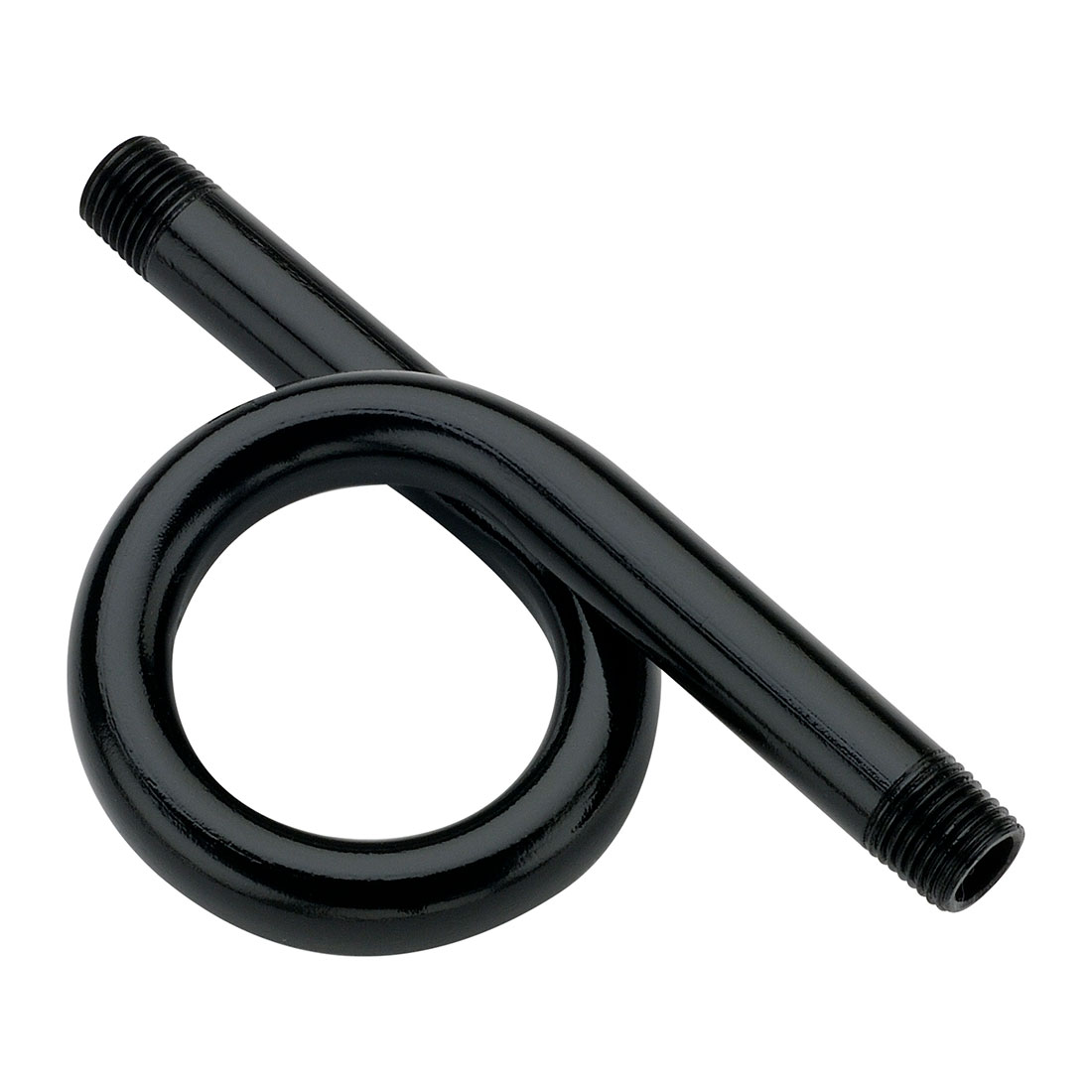

Pigtail Steam Syphon (2025 PIGTAIL SYPHON)

  • Item#: 2025 PIGTAIL SYPHON
  • Mfr#: 2025
    • Protect the instrument from the damaging effects of high temperature steam
    • Recommended for use in steam applications and systems that contain superheated vapor
    • Available in 1/4" and 1/2" NPT sizes in welded Steel, welded 316 Stainless Steel or seamless 316 stainless steel with rating to 3,800 psi at 850 ºF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

NOSHOK 2025 Pigtail Syphon: Welded 316 Stainless Steel, 180° Coil Style, 1/4" NPT. Safeguard instruments from high-temperature steam. Ideal for steam applications and superheated vapor systems. Available in 1/4" and 1/2" NPT sizes, with ratings up to 3,800 psi at 850 degrees Fahrenheit.

Welded 316 Stainless Steel, Schedule 40, 180 Degree Coil Style, 1/4" National Pipe Thread (NPT) Pigtail Steam Syphon

SPECIFICATIONS

Type      :      Steam Syphon
Connection Type      :      National Pipe Thread (NPT)
Connection Size      :      1/4 in
Dimension A (in)      :      5.5 in
Dimension A (mm)      :      139.7 mm
Dimension B (in)      :      2.5 in
Dimension B (mm)      :      63.5 mm
