- NOSHOK 200-3000-1-5-3-7-ST8
200-3000-1-5-3-7-ST8

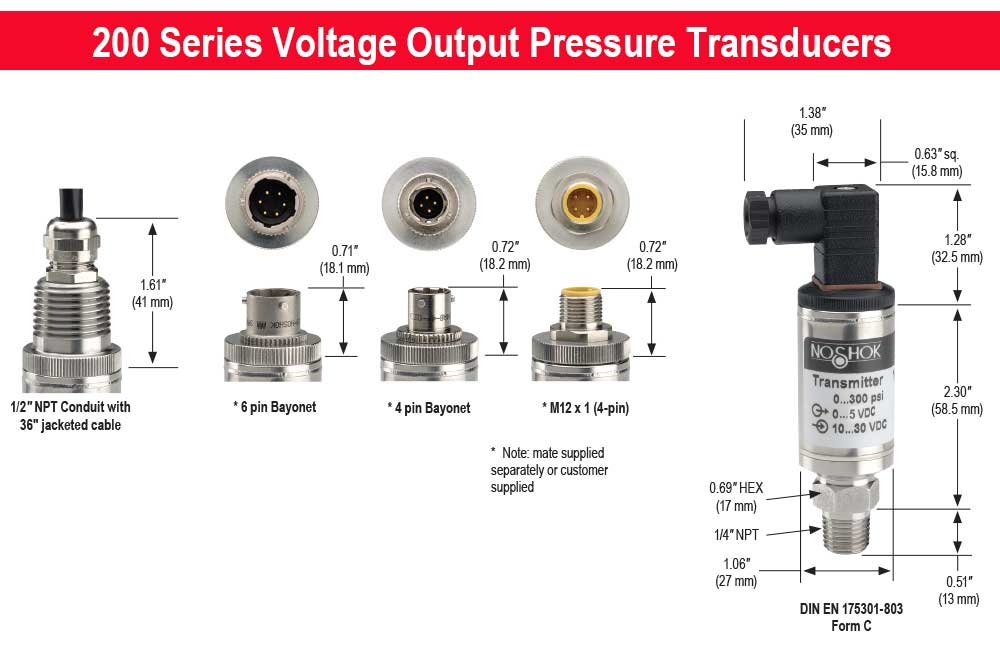

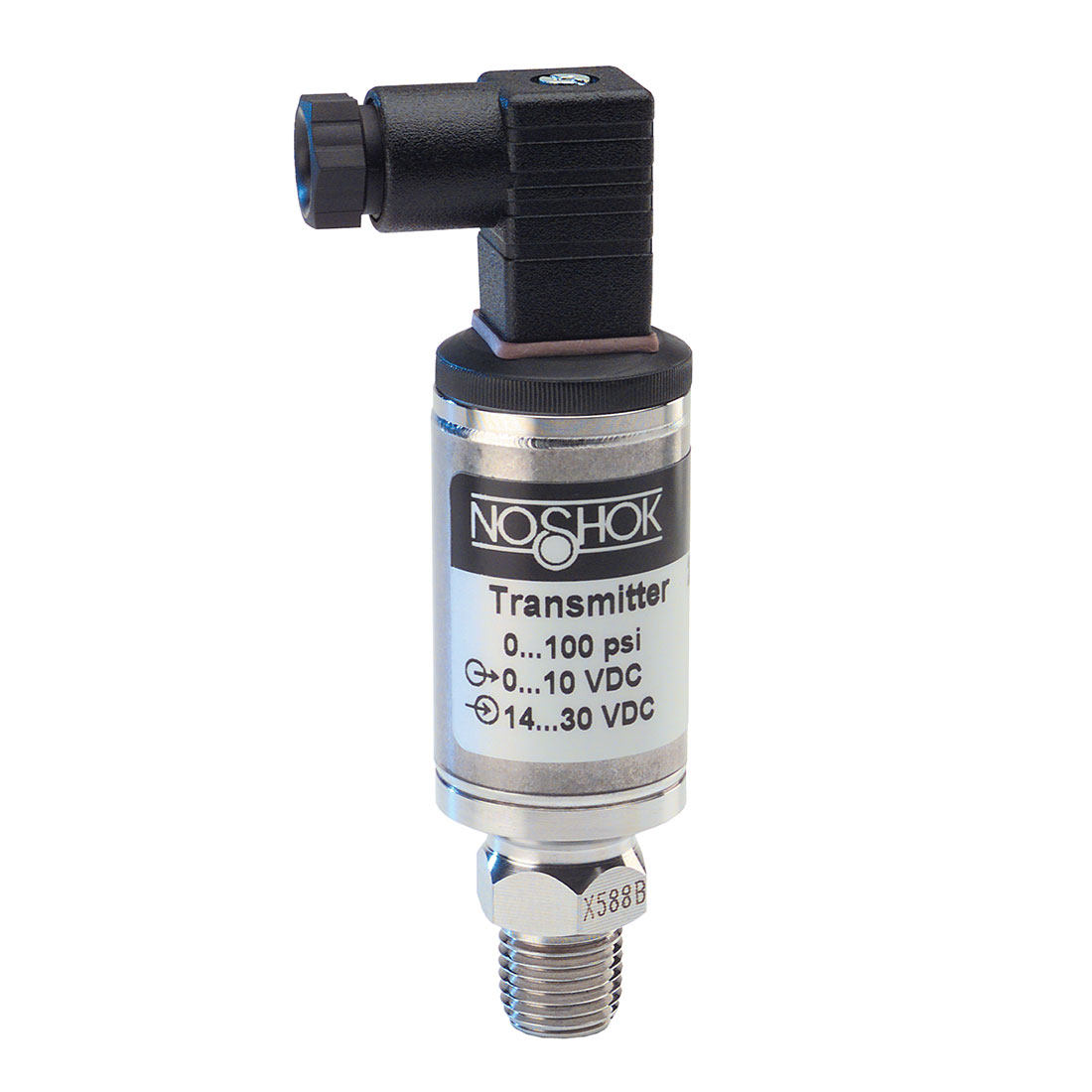

200 Series Voltage Output Pressure Transducer (200-3000-1-5-3-7-ST8)
- CP#:
- Item#: 200-3000-1-5-3-7-ST8-P01
- Mfr#: 200-3000-1-5-3-7-ST8
- Ranges from vacuum to 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
- Voltage output
- 316 and 17-4PH Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NOSHOK 200 Series Pressure Transducer: 0-3000 psig, 0.5% Accuracy, 0-10 Vdc Output, SAE J1926-3:7/16-20, DIN EN 175301-803 Form C. Versatile ranges, reliable voltage output, 316/17-4PH Stainless Steel, CE compliant.
0 to 3,000 psig, 0.5% Accuracy (BFSL), 0 to 10 Vdc Output, SAE J1926-3:7/16-20 Adjustable Pressure Transducer with DIN EN 175301-803 Form C Electrical Connection and 0.8 mm Stainless Steel Threaded Orifice
SPECIFICATIONS
| Type | : | Pressure Transducer |
| Max Operating Temperature (deg C) | : | 100 deg C |
| Max Operating Temperature (deg F) | : | 212 deg F |
| Min Operating Temperature (deg C) | : | -40 deg C |
| Min Operating Temperature (deg F) | : | -40 deg F |
| Media Temperature Range (deg C) | : | -30 to 100 deg C |
| Media Temperature Range (deg F) | : | -22 to 212 deg F |
| Pressure Range | : | 0 to 3,000 psig |
| Housing Material | : | 316 Stainless Steel |
DOCUMENTS
-
Brochure https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Brochure for 200 Series Voltage Output Pressure Transducers.pdf
