1900C-2

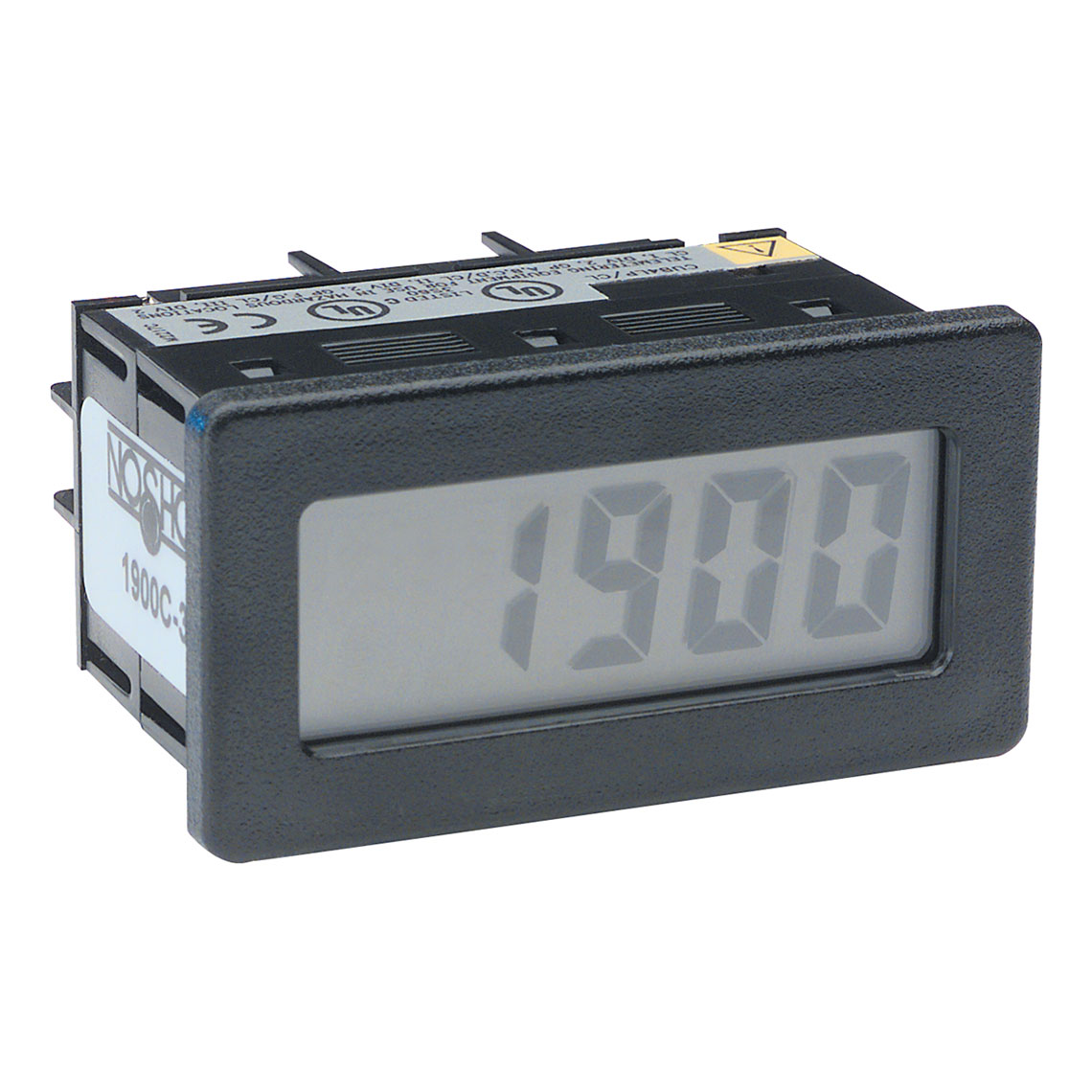

1900C Series Panel Meter Liquid Crystal Display (LCD) Backlight Compact Loop-Powered Digital Indicator

  • Item#: 1900C-2
  • Mfr#: 1900C-2
    • Compact, lightweight, impact-resistant NEMA 4X, IP65 housing with sealed front bezel
    • Fits DIN standard cut-out 2.68" (68 mm) x 1.30" (33 mm)
    • CE compliant to suppress RFI, EMI, and ESD
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

NOSHOK 1900C-2 Pressure Gauge: Compact loop-powered digital indicator with LCD backlight. NEMA 4X, IP65 housing. CE compliant.

Provides compact digital display of any desired unit of pressure, temperature, level, force, or flow measurement. 3-1/2 digit, 0.6" high display with a span range of 0 to 1999. Positive image reflective LCD. Span and zero offset capabilities. Negative pressure and overpressure indication. Selectable decimal point position.

SPECIFICATIONS

Type      :      Digital Indicator

DOCUMENTS

  • pdf
    Document-1     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/1900C_Indicators.pdf
  • pdf
    Document-2     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/ENC8TM-09.pdf
  • pdf
    Document-3     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/TM190004.pdf
