NOSHOK
102-MFAC

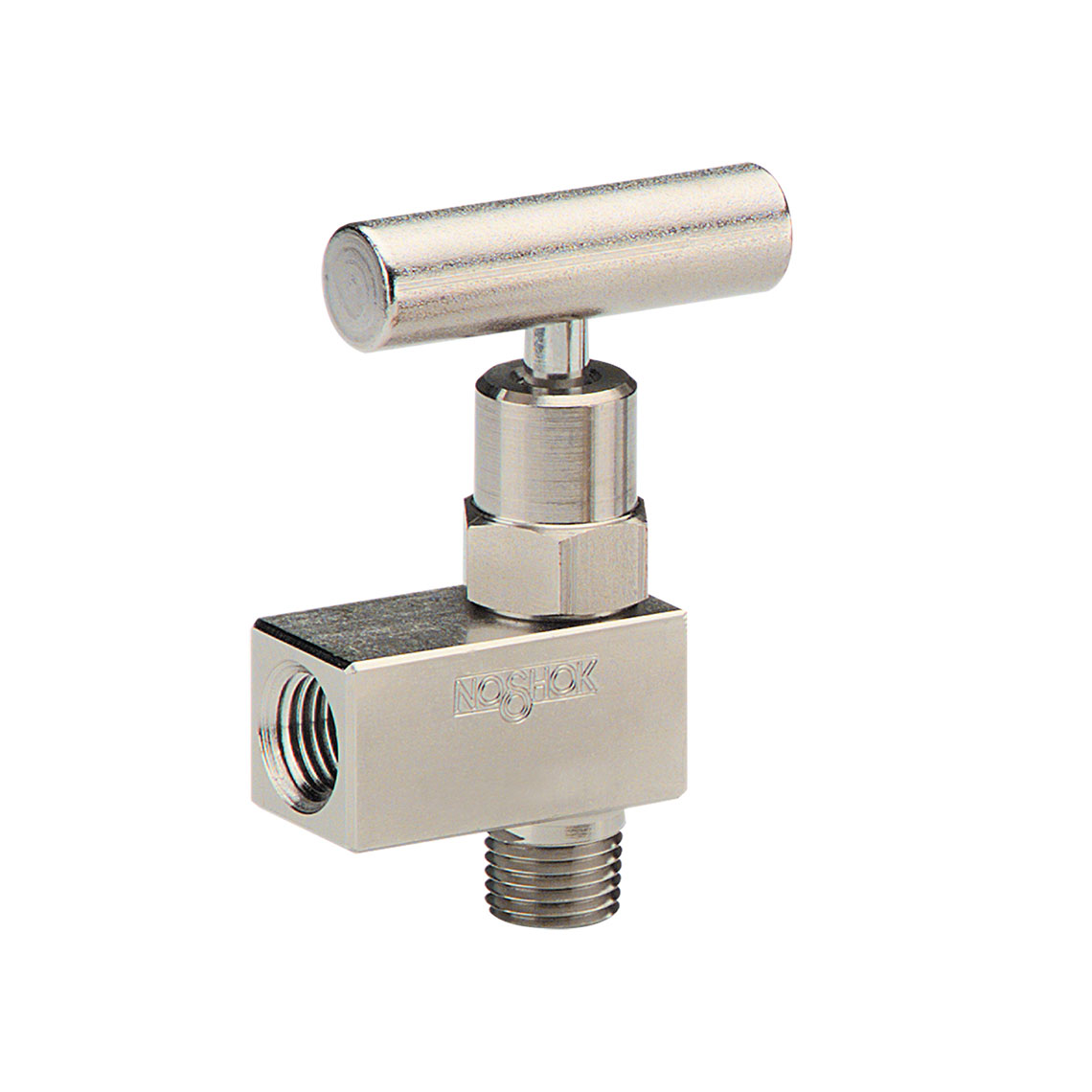

100 Series Mini Needle Valve with Hard Seat (102-MFAC)
- Item#: 102-MFAC
- Mfr#: 102-MFAC
- Compact size valve built for maximum durability and robust performance in the toughest applications
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
NOSHOK 102-MFAC Mini Needle Valve: 1/4" NPT, Steel, 0.172" Orifice. Compact design ensures durability in tough applications. Helium leak tested for guaranteed reliability. FKM o-ring seal and PTFE back-up ring protect from corrosion and galling.

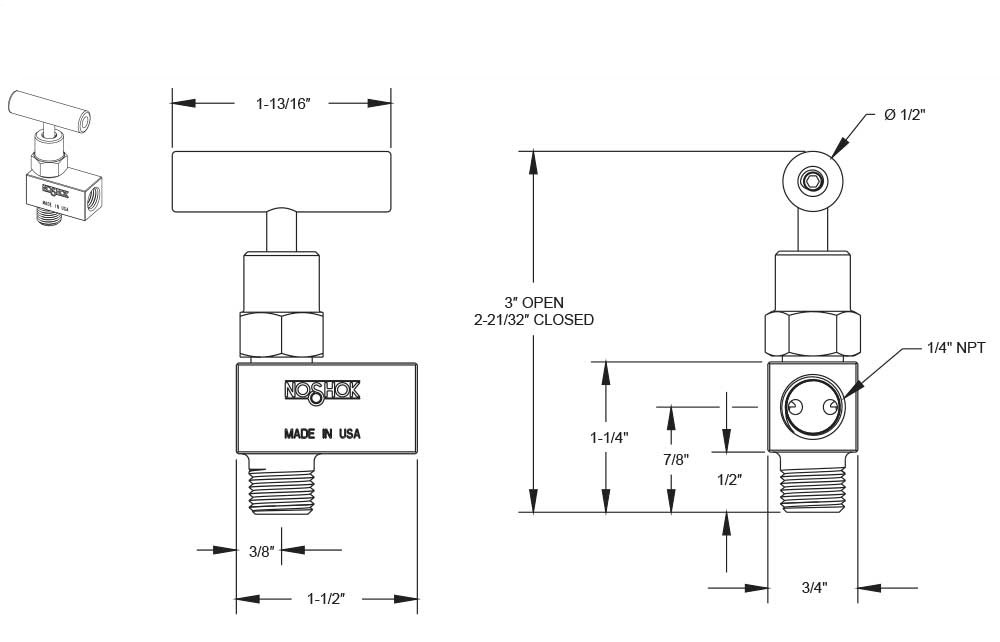

1/4" National Pipe Thread (NPT), Male x Female, Angle, Steel, 0.172" Orifice Hard Seat Mini Valve
SPECIFICATIONS
| Type | : | Needle Valve |
| Orifice Diameter | : | 0.172 in |
| Valve Type | : | Male-Female Angle |
| Connection Size | : | 1/4 in |
