5491VMF53

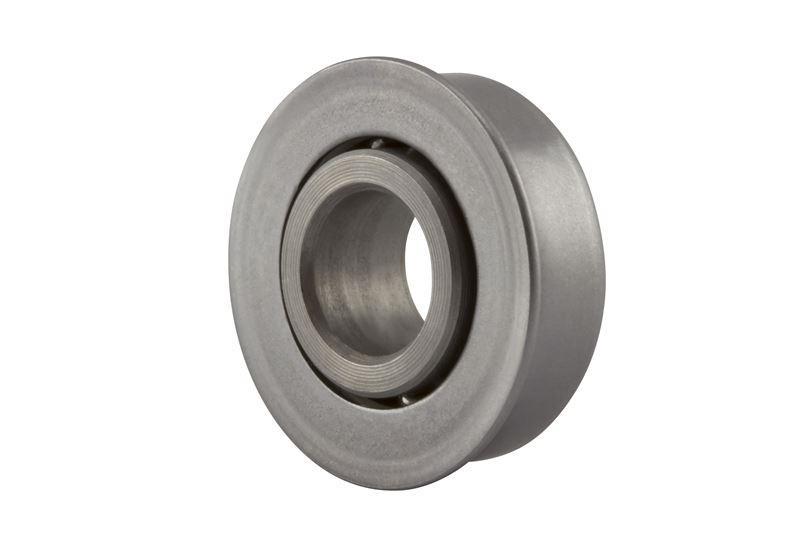

Nice® 5491VMF53 5000® Round Bore Unground Flanged Radial Ball Bearing, 1/2 in Dia Bore, 1-1/8 in OD, 1 Row, 0.437 in W, 200 lb Load
- CP#:
- Item#: 5491VMF53
- Mfr#: 5491VMF53
- UPC: 637400410001
- Designed for moderate loads and speeds
- 1010 soft carbon steel band on the outer ring permits the bearing to be pressed into a housing without the necessity of close housing tolerances
- Hardened inner and outer rings
- Full complement of balls for maximum capacity
- Pregreased with metered Shell Alvania #2 grease
- Flanged outer ring to locate the bearing when pressed into a tube or housing
- Fully unitized assembly
- C0 clearance
- No filling slot
- Without cage
- Case hardened carbon steel rings
- Grade 200 carbon steel balls
- Full compliant
- Shell Darina EP2
- Flanged outside ring
- Without snap ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The 5000® Series of bearings is similar in construction to the 400® Series bearing except it has a flange on the outer ring to locate the bearing when pressed into a tube or housing, thus eliminating the need for an external mounting device. The bearings are designed for moderate loads and speeds where running accuracy and noise level requirements do not warrant the more expensive precision ground bearings. This series of bearings feature a full ball complement without a retainer. The rings are case hardened and the soft steel band on the outer ring of the unitized assembly allows the bearing to be pressed into a housing without the necessity of close housing tolerances. The bearings are supplied pregreased as a standard. The bearings are designed for use in applications with speeds not exceeding 1200 rpm.
Nice® Unground Flanged Radial Ball Bearing, Round Bore, Series: 5000®, 1/2 in Bore Dia, 1-1/8 in Outside Dia, 1 Row, 0.437 in W, 1-1/4 in Flange Dia, Open Closure, 200 lb, 52100 Steel Bearing, 1200 rpm Maximum, 300 deg F, Uncoated
SPECIFICATIONS
| Series | : | 5000® |
| Bearing Material | : | 52100 Steel |
| Finish | : | Uncoated |
| Flange Diameter | : | 1-1/4 in |
| Load Capacity | : | 200 lb |
| Maximum Speed | : | 1200 rpm |
| Outside Diameter | : | 1-1/8 in |
| Number of Rows | : | 1 |
| Width | : | 0.437 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/458/Nice_40014VBF53_Catalog.pdf
