504VBF53

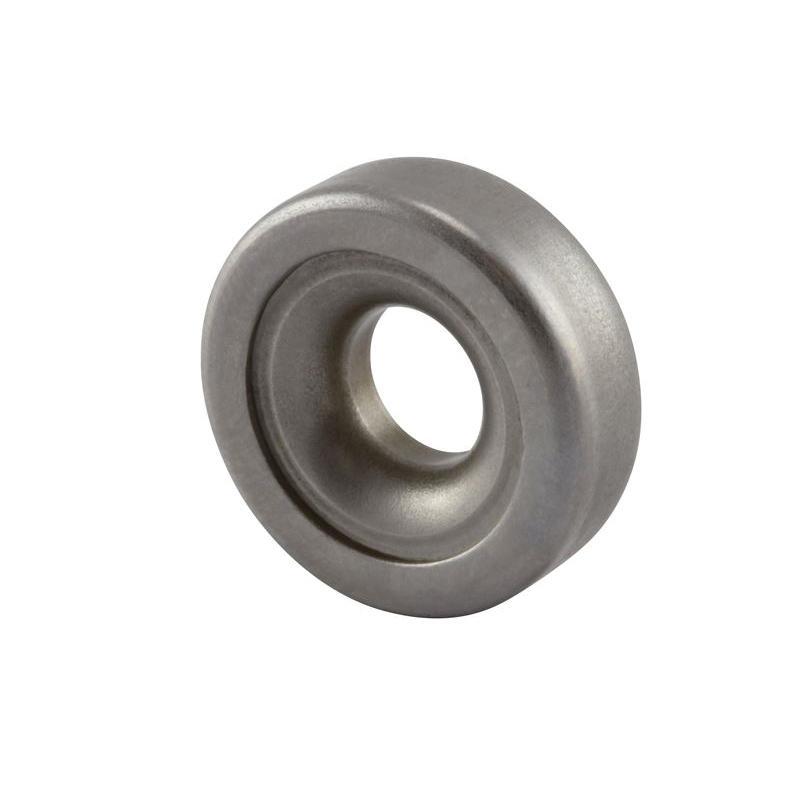

Nice® 504VBF53 500® Round Bore Unground Angular Contact Ball Bearing, 0.437 in Dia Bore, 0.812 in OD, 1 Row, 0.219 in W, 73 lb Load
- CP#:
- Item#: 504VBF53
- Mfr#: 504VBF53
- UPC: 637400409784
- Designed for moderate loads and speeds
- Hardened inner and outer rings
- Full complement of balls for maximum capacity
- Pregreased with metered Shell Alvania #2 grease
- Fully unitized assembly
- C0 clearance
- No filling slot
- 1010 soft carbon steel band
- Case hardened carbon steel rings
- Grade 200 carbon steel balls
- Full compliant
- Standard slush
- Flat outside ring
- Without snap ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The 500® Series of unground combination radial and thrust bearings are designed for applications where a pure radial bearing or a pure thrust bearing would be unsuitable. The 500® Series is an angular contact bearing designed for applications where thrust and/or radial load carrying capability is required.
Nice® Unground Angular Contact Ball Bearing, Round Bore, Series: 500®, 0.437 in Bore Dia, 0.812 in Outside Dia, 1 Row, 0.219 in W, Open Closure, 73 lb, Carbon Steel Bearing, 1000 rpm Maximum, 300 deg F, Uncoated
SPECIFICATIONS
| Series | : | 500® |
| Bearing Material | : | Carbon Steel |
| Finish | : | Uncoated |
| Load Capacity | : | 73 lb |
| Maximum Speed | : | 1000 rpm |
| Outside Diameter | : | 0.812 in |
| Number of Rows | : | 1 |
| Width | : | 0.219 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/458/Nice_40014VBF53_Catalog.pdf
