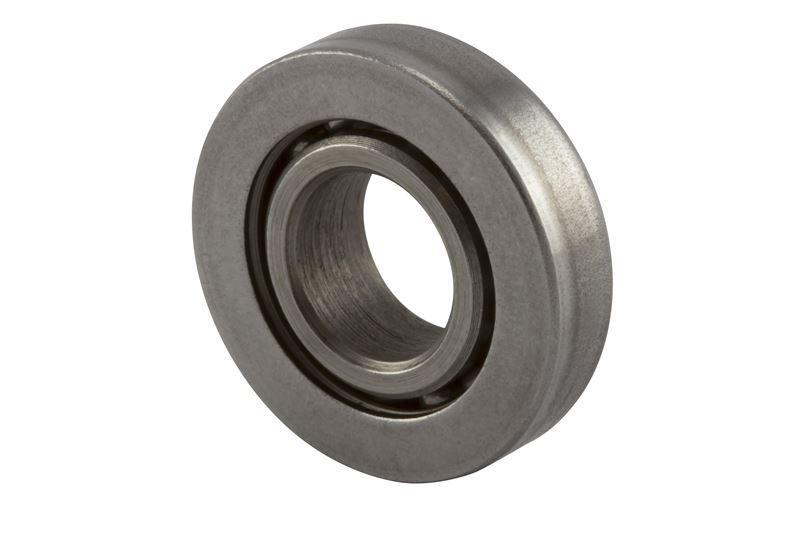

Nice® 4004VBF53 400® Round Bore Unground Radial Ball Bearing, 1/4 in Dia Bore, 7/8 in OD, 1 Row, 7/8 in W, 156 lb Load

  • Item#: 4004VBF53
  • Mfr#: 4004VBF53
  • UPC: 637400409647
  • Designed for moderate loads and speeds
  • 1010 soft carbon steel band on the outer ring permits the bearing to be pressed into a housing without the necessity of close housing tolerances
  • Hardened inner and outer rings
  • Full complement of balls for maximum capacity
  • Pregreased with metered Shell Alvania #2 grease
  • Fully unitized assembly
  • C0 clearance
  • No filling slot
  • Without cage
  • Case hardened carbon steel rings
  • Grade 200 carbon steel balls
  • Full compliant
  • Standard slush
  • Straight outside ring
  • Without snap ring
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

The 400® Series of unground radial ball bearings are designed for moderate loads and speeds where running accuracy and noise level requirements do not warrant the more expensive precision ground bearings. This series of bearings feature a full ball complement without a retainer and a soft steel band on the outer ring. This permits the bearing to be pressed into a housing without the necessity of close housing tolerances. The bearings are designed for use in applications with speeds not exceeding 1200 rpm.

Nice® Unground Radial Ball Bearing, Round Bore, Series: 400®, 1/4 in Bore Dia, 7/8 in Outside Dia, 1 Row, 7/8 in W, Open Closure, 156 lb, 52100 Steel Bearing, 1200 rpm Maximum, 300 deg F, Steel

SPECIFICATIONS

Product Type      :      Round Bore
Bearing Number      :      400®
Bearing Material      :      52100 Steel
Closure Type      :      Open
Finish      :      Steel
Load Capacity      :      156 lb
Maximum Speed      :      1200 rpm
Outside Diameter      :      7/8 in
Bore Diameter      :      1/4 in
Number of Rows      :      1
Mounted      :      No
Measurement System      :      Imperial
Temperature Rating      :      300 deg F
Width      :      7/8 in
