SH6-6207ZZEC3

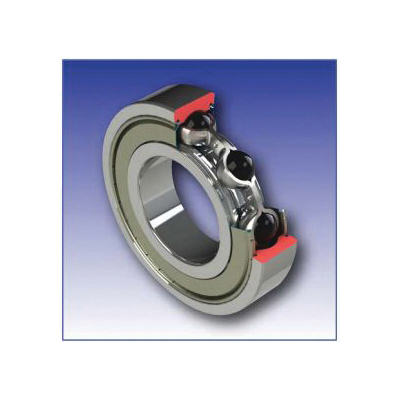

NACHI SH6-6207ZZEC3 6200 Hybrid Deep Groove Ball Bearing, 35 mm Dia Bore, 72 mm OD, 1 Rows, 17 mm W, 25700 N Dynamic/15300 N Static Load
- CP#:
- Item#: SH6-6207ZZEC3
- Mfr#: SH6-6207ZZEC3
- Nonconductive (electrically and thermally)
- High corrosion/wear resistance
- High strength/hardness resulting in longer life
- Lighter weight for higher speed and acceleration
- Excellent surface finish for less friction at higher speeds
- Requires little lubricant
- Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
- Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings utilize ceramic (Silicon Nitride) balls for very special applications. Bearings have two shields and already contain the proper amount of grease. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can provide both high-running accuracy and high-speed operation.
NACHI Deep Groove Ball Bearing, Hybrid, Series: 6200, 35 mm Bore, 72 mm OD, 1 Rows, 17 mm Width, Double Shield Closure, 25700 N Dynamic/15300 N Static Load, Ceramic Bearing, Stamped Steel Cage, 12300 rpm Grease Maximum, 250 deg F
SPECIFICATIONS
| Series | : | 6200 |
| Bearing Material | : | Ceramic |
| Load Capacity | : | 25700 N Dynamic/15300 N Static |
| Maximum Speed | : | 12300 rpm Grease |
| Outside Diameter | : | 72 mm |
| Number of Rows | : | 1 |
| Width | : | 17 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_16004C3_Catalog.pdf -
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_16004C3_User_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_SH66203ZZEC3_Specification_Sheet.pdf
