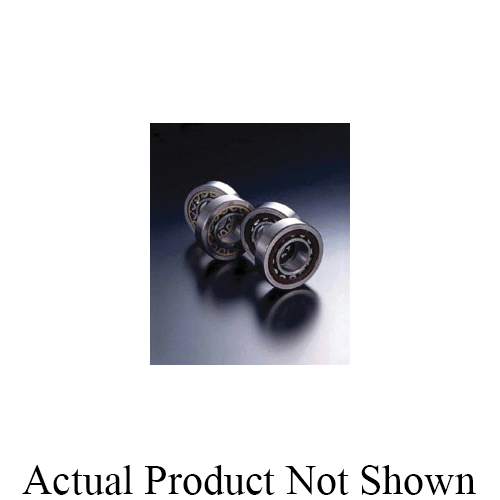

NU220MYC3
NACHI NU220MYC3 NU Series Cylindrical Roller Bearing, 100 mm Dia Bore, 180 mm OD, 1 Row, 34 mm W, 183000 N Dynamic/217000 N Static Load
- CP#:
- Item#: NU220MYC3
- Mfr#: NU220MYC3
- Separable components simplify mounting and removal
- Long life
- Heavy radial load capacity
- Not suitable for thrust loads
- Accommodates axial expansion and contraction
- Effective when the bearing rings require interference
- Low friction between rollers and flanges
- No redial load capacity due to no flange of outer or inner ring
- Used a non-locating side
- Inner ring without rib
- Outer ring with ribs on both sides([JIS B 1533)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Cylindrical roller bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in the assembly/disassembly of components The 'NU' Type bearings has shoulders on both sides of the outer ring and no shoulder on the inner ring. This allows the shaft to move axially for thermal expansion. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in pumps, compressors, gearboxes, transmissions, rolling mills, crushers and pulverizers. This bearing is often used in high speed applications.
NACHI Cylindrical Roller Bearing, Series: NU Series, 100 mm Bore, 180 mm OD, 1 Row, 34 mm Width, Open Closure, 183000 N Dynamic/217000 N Static Load, Steel Alloy Bearing, Machined Brass Cage, 3600 rpm Grease/4300 rpm Oil Maximum
SPECIFICATIONS
| Series | : | NU Series |
| Bearing Material | : | Steel Alloy |
| Load Capacity | : | 183000 N Dynamic/217000 N Static |
| Maximum Speed | : | 3600 rpm Grease/4300 rpm Oil |
| Outside Diameter | : | 180 mm |
| Number of Rows | : | 1 |
| Width | : | 34 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_E5008XNNTS1_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_N207MYC3_Specification_Sheet.pdf
