NJ312

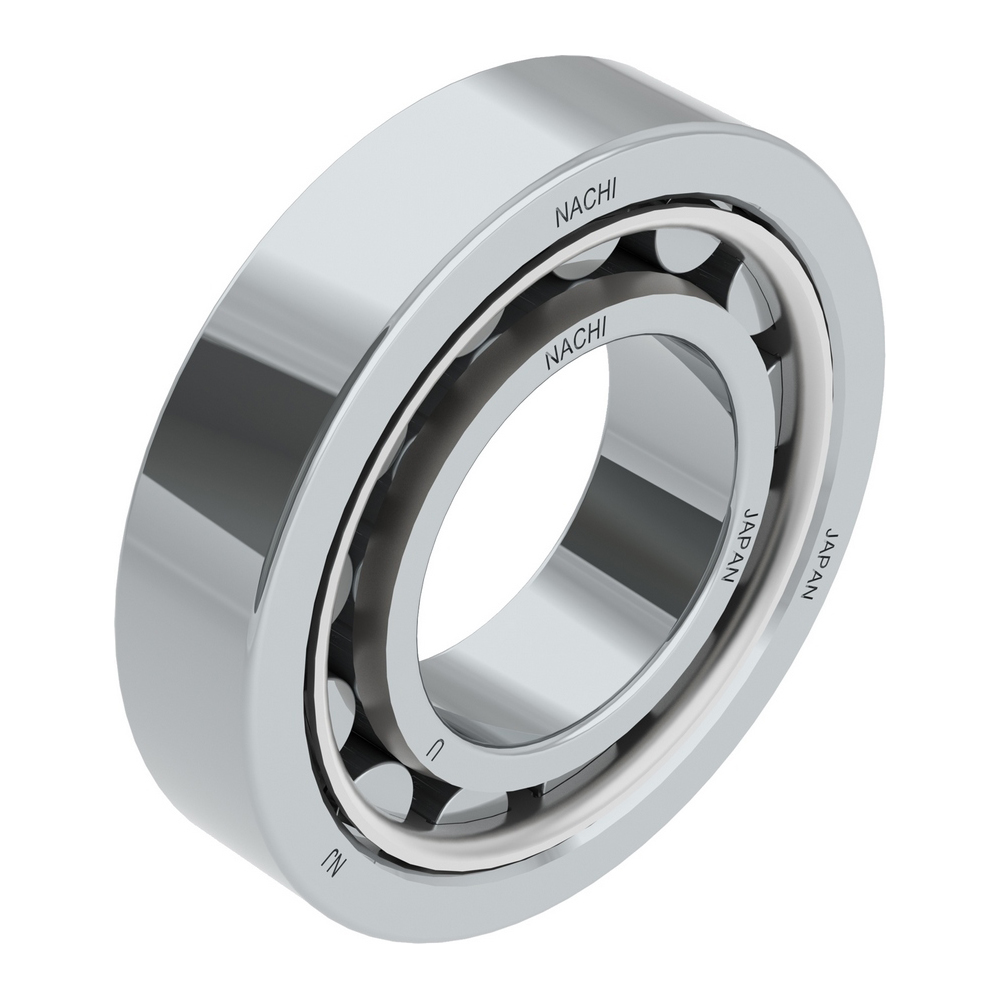

NACHI NJ312 NJ Series Cylindrical Roller Bearing, 60 mm Dia Bore, 130 mm OD, 1 Row, 31 mm W, 124000 N Dynamic/126000 N Static Load
- CP#:
- Item#: NJ312
- Mfr#: NJ312
- Separable components simplify mounting and removal
- Long life
- Heavy radial load capacity
- Suitable for light axial thrust loads
- Accommodates limited axial expansion and contraction
- Effective when the bearing rings require interference
- Low friction between rollers and flanges
- Small radial load capacity in only one direction with on integral flange or by mountings a loose flange
- Inner ring with a rib
- Without loose rib
- Outer ring with ribs on both sides([JIS B 1533)
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Cylindrical roller bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in assembly/disassembly of components. The 'NJ' Type bearings has shoulders on both sides of the outer ring and one shoulder on the inner ring. This allows the bearing to accept light axial loads in one direction. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in gearboxes, rolling mills, crushers and pulverizers.
NACHI Cylindrical Roller Bearing, Series: NJ Series, 60 mm Bore, 130 mm OD, 1 Row, 31 mm Width, Open Closure, 124000 N Dynamic/126000 N Static Load, Steel Alloy Bearing, Stamped Steel Cage, 3840 rpm Grease/4480 rpm Oil Maximum
SPECIFICATIONS
| Series | : | NJ Series |
| Bearing Material | : | Steel Alloy |
| Load Capacity | : | 124000 N Dynamic/126000 N Static |
| Maximum Speed | : | 3840 rpm Grease/4480 rpm Oil |
| Outside Diameter | : | 130 mm |
| Number of Rows | : | 1 |
| Width | : | 31 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_E5008XNNTS1_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_N207MYC3_Specification_Sheet.pdf
