NJ205EG

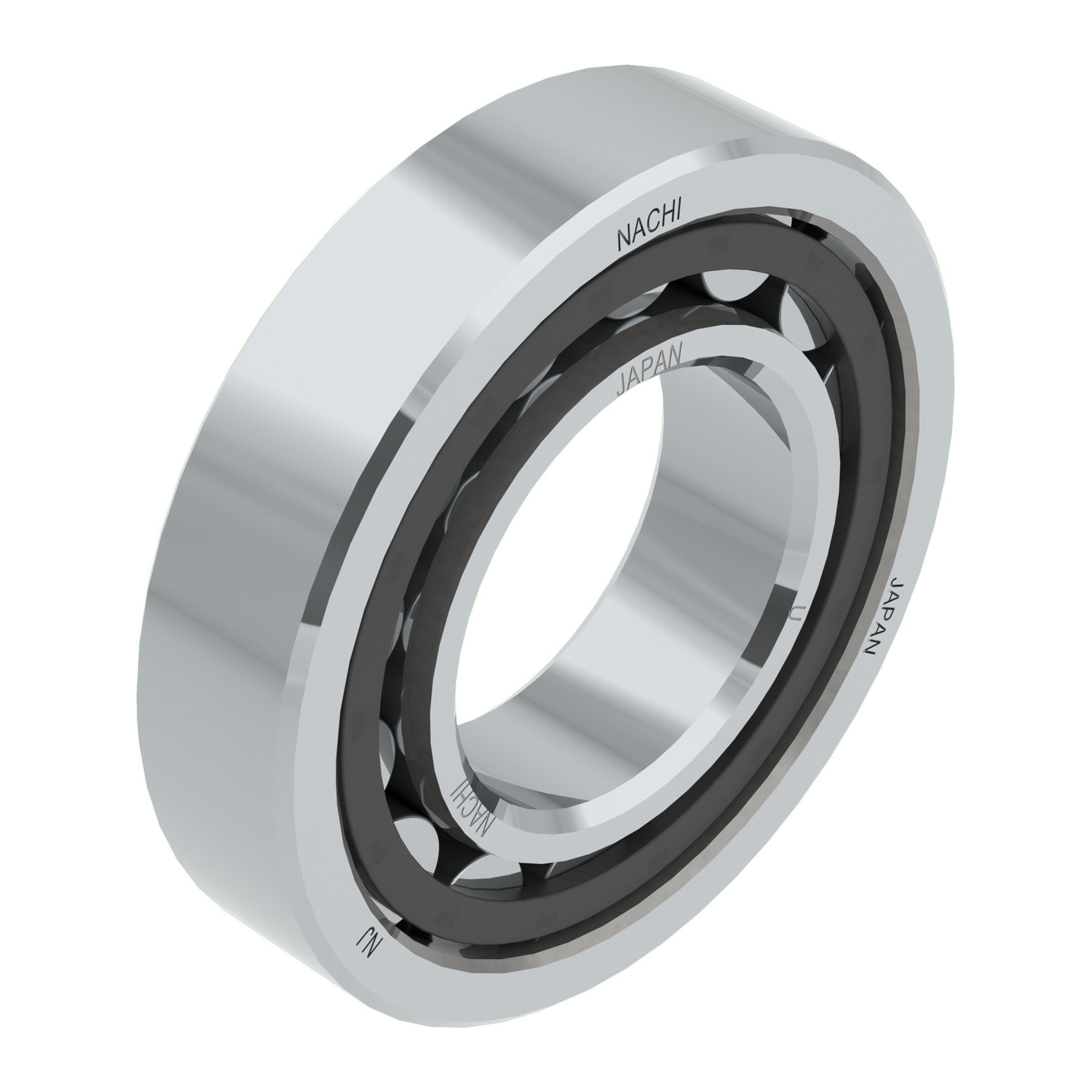

NACHI NJ205EG NJ200 High Load Capacity Cylindrical Roller Bearing, 25 mm Dia Bore, 52 mm OD, 1 Row, 15 mm W, 29300 N Dynamic/15700 N Static Load
- CP#:
- Item#: NJ205EG
- Mfr#: NJ205EG
- Large radial load capacity
- Suitable for high speed applications
- Low friction between rollers and flanges
- Small radial load capacity in only one direction with on integral flange or by mountings a loose flange
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Cylindrical Roller Bearing – ‘NJ’ CONFIGURATION Cylindrical Roller Bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in assembly/disassembly of components. The ‘NJ’ Type bearings has shoulders on both sides of the outer ring and one shoulder on the inner ring. This allows the bearing to accept light axial loads in one direction. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in gearboxes, rolling mills, crushers and pulverizers.
NACHI Cylindrical Roller Bearing, High Load Capacity, Series: NJ200, 25 mm Bore, 52 mm OD, 1 Row, 15 mm Width, 29300 N Dynamic/15700 N Static Load, Steel Bearing, Nylon Cage, 12000 rpm Grease/15000 rpm Oil Maximum
SPECIFICATIONS
| Bearing Material | : | Steel |
| Load Capacity | : | 29300 N Dynamic/15700 N Static |
| Maximum Speed | : | 12000 rpm Grease/15000 rpm Oil |
| Outside Diameter | : | 52 mm |
| Number of Rows | : | 1 |
| Inside Diameter | : | 25 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 15 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1078/NACHI_E30203J_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1078/NACHI_N205_Specification_Sheet.pdf
