H-1280/20

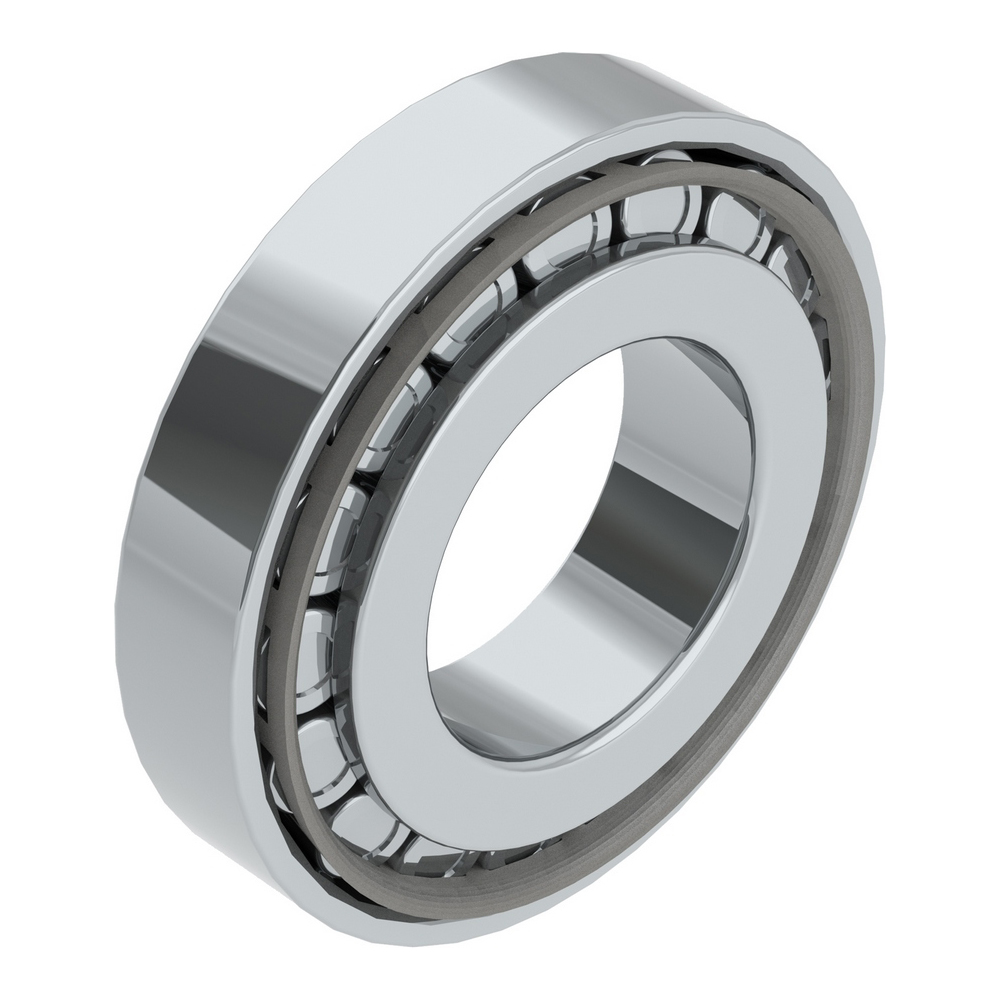

NACHI H-1280/20 Tapered Roller Bearing, 22.225 mm Dia Bore, 57.15 mm OD, 1 Row, 22.225 mm W, 52600 N Dynamic/55700 N Static Load
- CP#:
- Item#: H-1280/20
- Mfr#: H-1280/20
- Economical
- Long life
- Low friction and operating temperatures
- Adjustable preload
- Heavy radial/axial, vibrating and impact loads
- Used as a combination or a double-row
- Load carrying capacity - radial load and single-direction thrust load
- Composite load
- High-speed rotation
- Accuracy
- Low torque
- Low noise
- Rigidity
- Permissible aligning
- Separable inner ring/outer ring
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
A tapered roller bearing consists of a cone (or inner ring), the cup (or outer ring), tapered rollers and a cage. The tapered rollers allows the bearing to handle a combination of heavy radial and thrust loads. The bearings are separable. Internal clearance is established during mounting by the axial positioning of the cone relative to the cup. Preloading this bearing can obtain a higher rigidity and better running accuracy to optimize performance. They are used mostly for heavy duty, moderate speed applications. These bearings are generally used in pairs and are most common on agriculture, construction and mining equipment, vehicle and trailer axles and in gear boxes.
NACHI Tapered Roller Bearing, 22.225 mm Bore, 57.15 mm OD, 1 Row, 22.225 mm Width, Open Closure, 52600 N Dynamic/55700 N Static Load, Japanese Steel Bearing, Pressed Steel Cage, 7600 rpm Grease/10000 rpm Oil Maximum, 250 deg F
SPECIFICATIONS
| Bearing Material | : | Japanese Steel |
| Load Capacity | : | 52600 N Dynamic/55700 N Static |
| Maximum Speed | : | 7600 rpm Grease/10000 rpm Oil |
| Outside Diameter | : | 57.15 mm |
| Number of Rows | : | 1 |
| Width | : | 22.225 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_28580R21_Specification_Sheet.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_H1159020_Catalog.pdf
