NACHI 7316BMBUC3
NACHI
Email Print

7316BMBUC3

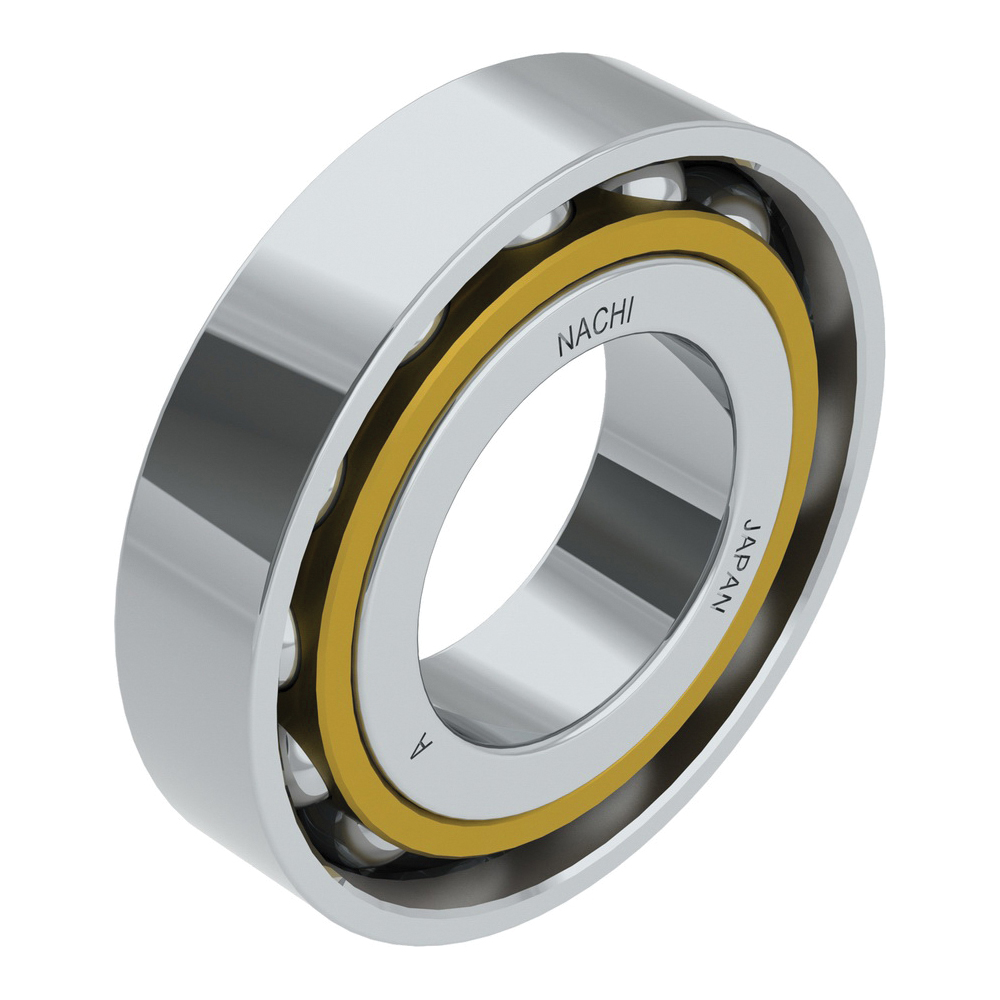

NACHI 7316BMBUC3 7300 Angular Contact Ball Bearing, 80 mm Dia Bore, 170 mm OD, 1 Row, 39 mm W, 40 deg, 139000 N Dynamic/112000 N Static Load

  • Item#: 7316BMBUC3
  • Mfr#: 7316BMBUC3
    • The raceways of both the inner and outer rings of this bearing type are made with a set contact angle
    • Single row angular contact ball bearings can sustain radial, axial or composite loads, however any axial load must be in one direction
    • Larger contact angle type has better axial load capability
    • Small contact angle type has higher permissible speed capability
    • This bearing type is generally used in adjacent positions
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Nachi's new BMBU 40 degree angular contact ball bearings have a counter bored inner ring and new optimized cage for better lubricant flow, especially in vertical shaft electric motor applications. Lower rotating mass results in better energy efficiency.

NACHI Angular Contact Ball Bearing, Series: 7300, 80 mm Bore, 170 mm OD, 1 Row, 39 mm Width, 40 deg Contact Angle, Open Closure, 139000 N Dynamic/112000 N Static Load, Steel Bearing, Machined Brass Cage, 3200 rpm Grease/4200 rpm Oil Maximum, 250 deg F

SPECIFICATIONS

Series      :      7300
Bearing Material      :      Steel
Contact Angle      :      40 deg
Load Capacity      :      139000 N Dynamic/112000 N Static
Maximum Speed      :      3200 rpm Grease/4200 rpm Oil
Outside Diameter      :      170 mm
Number of Rows      :      1
Width      :      39 mm
