7315B

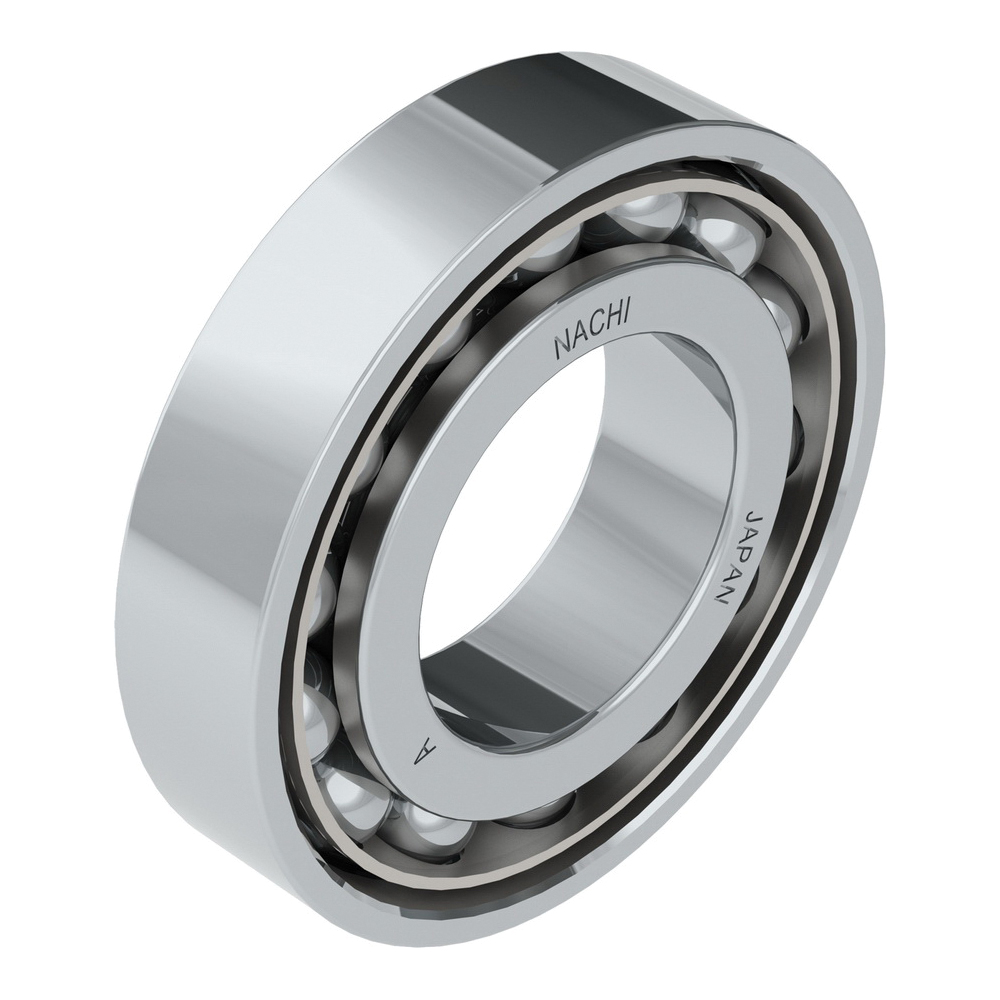

NACHI 7315B 7300 Angular Contact Ball Bearing, 75 mm Dia Bore, 160 mm OD, 1 Row, 37 mm W, 40 deg, 128000 N Dynamic/100000 N Static Load
- CP#:
- Item#: 7315B
- Mfr#: 7315B
- The raceways of both the inner and outer rings of this bearing type are made with a set contact angle
- Single row angular contact ball bearings can sustain radial, axial or composite loads, however any axial load must be in one direction
- Larger contact angle type has better axial load capability
- Small contact angle type has higher permissible speed capability
- This bearing type is generally used in adjacent positions
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft.
NACHI Angular Contact Ball Bearing, Series: 7300, 75 mm Bore, 160 mm OD, 1 Row, 37 mm Width, 40 deg Contact Angle, Open Closure, 128000 N Dynamic/100000 N Static Load, Steel Bearing, Machined Brass Cage, 3400 rpm Grease/4500 rpm Oil Maximum, 250 deg F
SPECIFICATIONS
| Series | : | 7300 |
| Bearing Material | : | Steel |
| Contact Angle | : | 40 deg |
| Load Capacity | : | 128000 N Dynamic/100000 N Static |
| Maximum Speed | : | 3400 rpm Grease/4500 rpm Oil |
| Outside Diameter | : | 160 mm |
| Number of Rows | : | 1 |
| Width | : | 37 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/1078/NACHI_7214B_Catalog.pdf
