6304-2NSE9NR

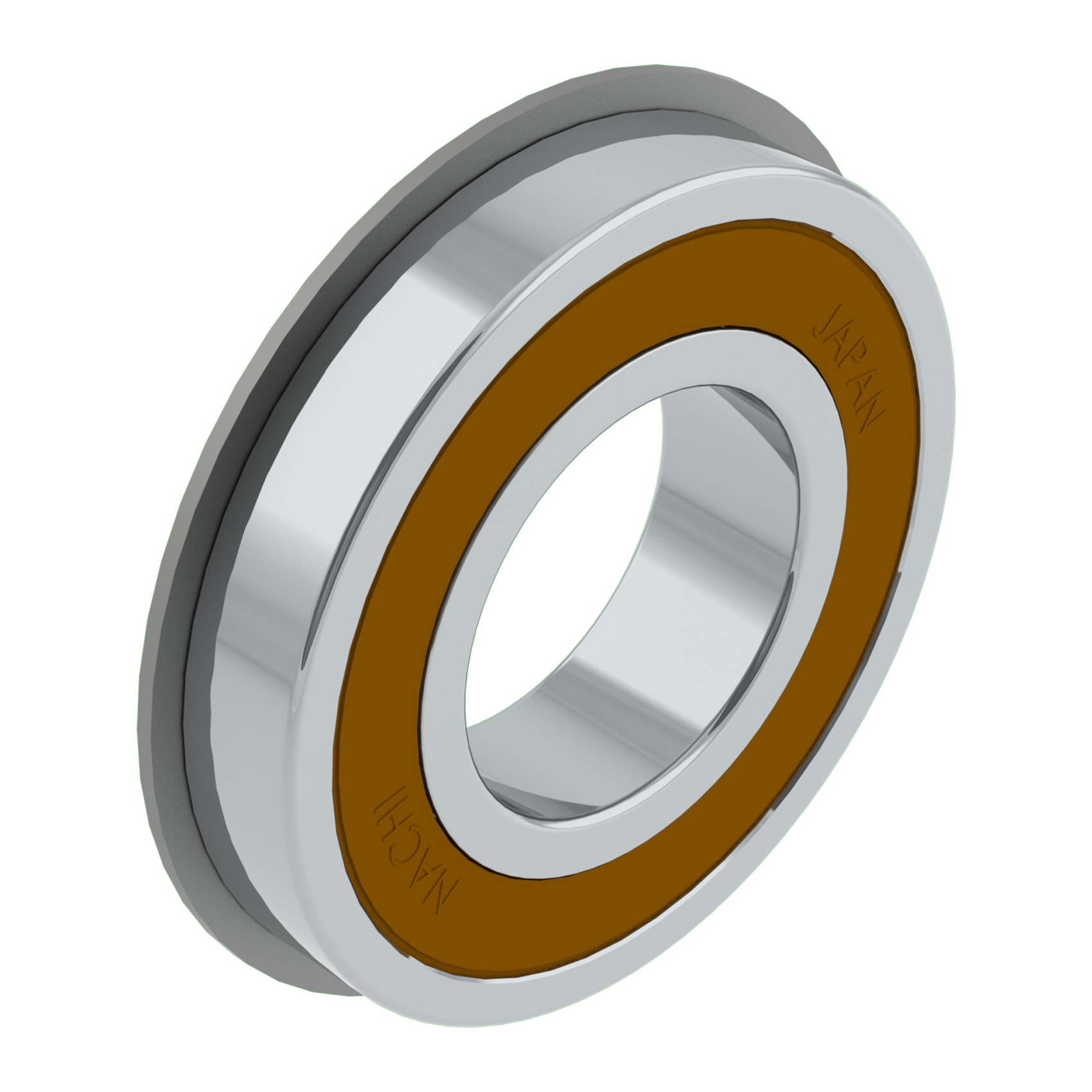

NACHI 6304-2NSE9NR 6300 Deep Groove Ball Bearing, 20 mm Dia Bore, 52 mm OD, 1 Rows, 15 mm W, 15900 N Dynamic/7900 N Static Load
- CP#:
- Item#: 6304-2NSE9NR
- Mfr#: 6304-2NSE9NR
- Excellent high speed capability
- Good radial load capacity
- Good axial load capacity in both directions
- Low torque requirements during startup and operation
- Low noise
- Little/no maintenance required
- Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
- Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
- Buna-N rubber light contact seals on both sides for 10 to 50 mm bore
- Snap ring and groove
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.
NACHI Deep Groove Ball Bearing, Series: 6300, 20 mm Bore, 52 mm OD, 1 Rows, 15 mm Width, Double Seal Closure, 15900 N Dynamic/7900 N Static Load, Steel Bearing, Buna-N Seal, Stamped Steel Cage, 10000 rpm Grease/17000 rpm Oil Maximum, 250 deg F
SPECIFICATIONS
| Bearing Material | : | Steel |
| Load Capacity | : | 15900 N Dynamic/7900 N Static |
| Maximum Speed | : | 10000 rpm Grease/17000 rpm Oil |
| Outside Diameter | : | 52 mm |
| Number of Rows | : | 1 |
| Seal Material | : | Buna-N |
| Inside Diameter | : | 20 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 15 mm |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_16004C3_Catalog.pdf -
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_16004C3_User_Manual.pdf
