5205-2NS

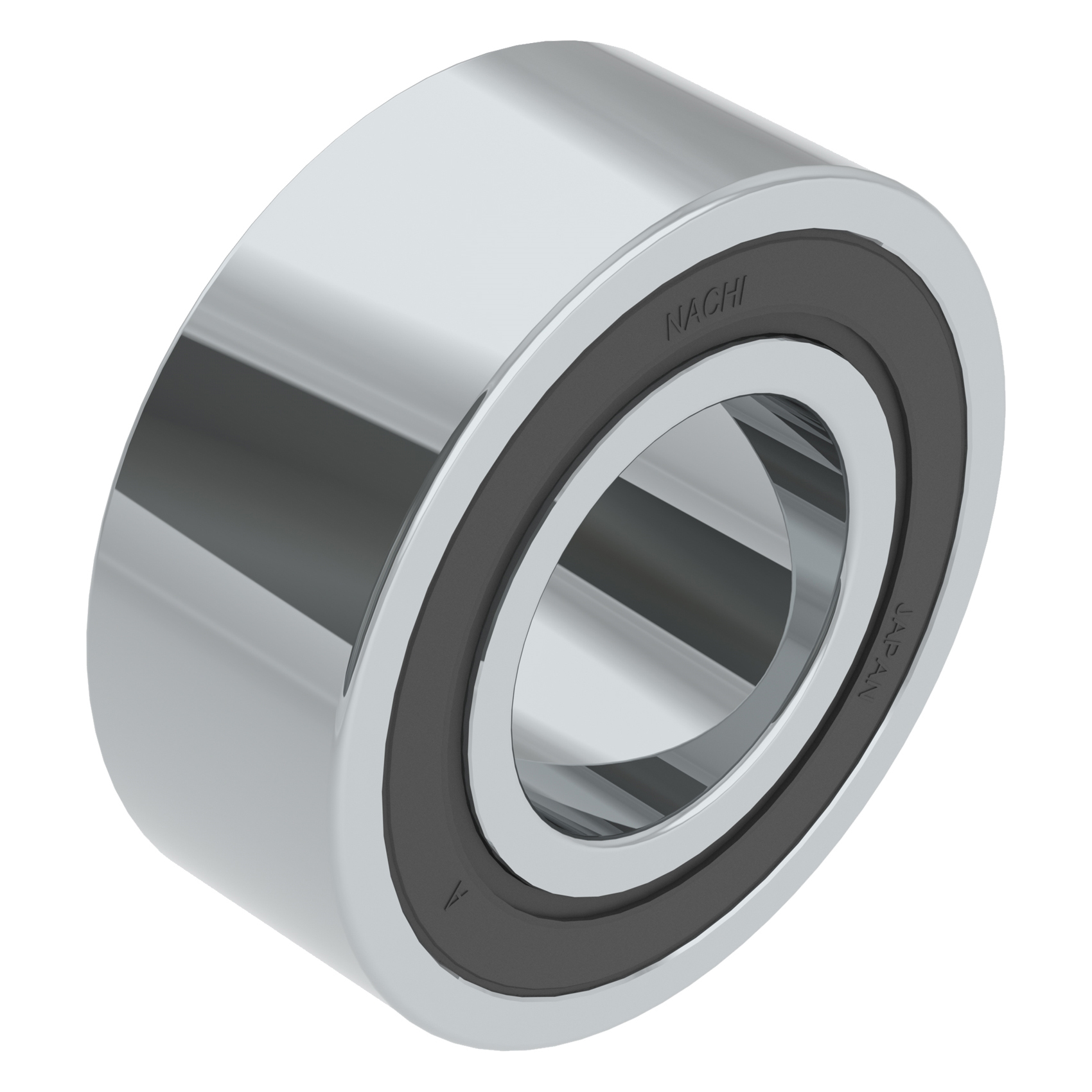

NACHI 5205-2NS 5200 Angular Contact Ball Bearing, 25 mm Dia Bore, 52 mm OD, 2 Rows, 20.6 mm W, 20 deg, 21800 N Dynamic/15100 N Static Load
- CP#:
- Item#: 5205-2NS
- Mfr#: 5205-2NS
- More economical than two matched single-row angular contact bearings
- Single bearing yields handling and mounting benefits
- More compact than two single-row bearings
- Support radial and axial loads in either direction
- Capable of some moment load
- Sealed bearings are maintenance-free
- Low noise
- Energy efficient
- Cost effective
- Reduced friction
- Long life
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
A double-row angular contact ball bearing is basically two single-row angular contact ball bearings with 20 deg contact angles, mounted back-to-back while contained within a narrower single bearing. These bearings occupy less axial space and can take a bi-directional axial, radial and moment loads in one bearing where it takes a matched pair otherwise.
NACHI Angular Contact Ball Bearing, Series: 5200, 25 mm Bore, 52 mm OD, 2 Rows, 20.6 mm Width, 20 deg Contact Angle, Double Seal Closure, 21800 N Dynamic/15100 N Static Load, Pressed Steel Cage, 9500 rpm Grease/13000 rpm Oil Maximum
SPECIFICATIONS
| Contact Angle | : | 20 deg |
| Load Capacity | : | 21800 N Dynamic/15100 N Static |
| Maximum Speed | : | 9500 rpm Grease/13000 rpm Oil |
| Outside Diameter | : | 52 mm |
| Number of Rows | : | 2 |
| Inside Diameter | : | 25 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 20.6 mm |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_52002NS_Specification_Sheet.pdf -
Instruction/Installation Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_7204BMUC3_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/128/NACHI_H1159020_Catalog.pdf
