29426EX

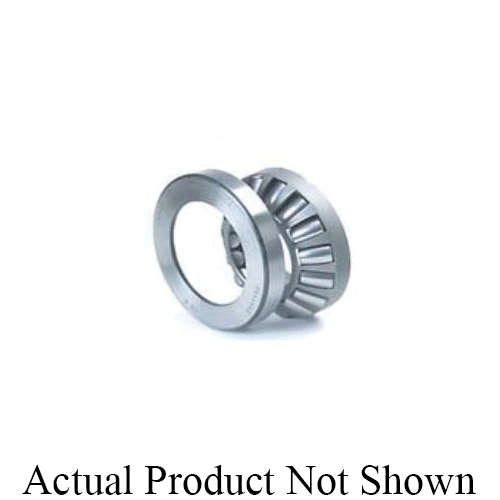

NACHI 29426EX Open Spherical Roller Thrust Bearing, 130 mm Dia Bore, 270 mm OD, 85 mm W, 1400000 N Dynamic/4300000 N Static Load
- CP#:
- Item#: 29426EX
- Mfr#: 29426EX
- Improved roller roundness and raceway accuracy
- Reduced noise and vibration
- Cages are stamped steel (EX) for extra capacity or machined brass (E)
- Self-aligning and can accommodate low and high speeds
- Long life
- Low operating temperature
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
A spherical roller thrust bearing is a bearing that utilizes barrel shaped rollers to manage extreme thrust loads while rotating with low friction and allowing for some angular misalignment. There are two basic designs. A conventional "E-Type" design uses a machined brass cages while the "EX-Type" design uses an optimized internal design, larger rollers and a stamped steel cage for higher loads and longer life. Spherical roller thrust bearings are used mostly in heavy duty industrial applications where heavy axial or shock loads exist. They are commonly used in gearboxes, extruders, pumps, screw conveyors, marine propulsion and drilling equipment.
NACHI Spherical Roller Thrust Bearing, Open, Series: 29400, 130 mm Bore, 270 mm OD, 85 mm Width, Single Thrust Direction, 1400000 N Dynamic/4300000 N Static Load, Steel Alloy Bearing, 850 rpm Grease/1200 rpm Oil Maximum, 400 deg F
SPECIFICATIONS
| Series | : | 29400 |
| Bearing Material | : | Steel Alloy |
| Load Capacity | : | 1400000 N Dynamic/4300000 N Static |
| Maximum Speed | : | 850 rpm Grease/1200 rpm Oil |
| Outside Diameter | : | 270 mm |
| Thrust Direction | : | Single |
| Width | : | 85 mm |
DOCUMENTS
-
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_16004C3_User_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_21307EW33C3_Catalog.pdf
