23034EXQW33C3

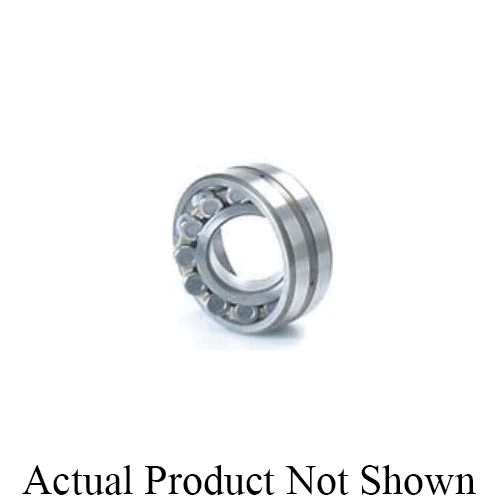

NACHI 23034EXQW33C3 Spherical Roller Bearing With Cylindrical Bore, 170 mm Dia Bore, 260 mm OD, 2 Rows, 67 mm W, 880000 N Dynamic/1080000 N Static Load
- CP#:
- Item#: 23034EXQW33C3
- Mfr#: 23034EXQW33C3
- Long life
- Low friction/torque
- Low operating temperature
- Reduced noise and vibration
- Improved roller roundness and raceway accuracy
- Enhanced surface finishes result in improved lube film
- Self-aligning in low and high speed applications
- Press fitting adapter sleeves make internal clearance adjustment
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Double-rowed spherical roller bearings are the workhorse of the industry. Their barrel shaped rollers and spherical outer ring raceway permits this bearing to operate with misalignment with no reduction in bearing life. Spherical roller bearings are used mostly in heavy duty industrial applications where extreme radial loads exist. They also excel in handling axial loads in either direction, contaminated environments, misalignment, shock loads and vibration. Nachi Sphericals are manufactured in a number of design and material configurations depending upon the type of application and the size of the bearing. Most come standard with a lubrication groove and holes (W33) on the OD of the outer ring. Symmetrical or Asymmetrical (A) rollers may be used with stamped steel or machined brass cages. The "EX" design uses larger diameter rollers for the highest load ratings. All bearings are heat stabilized to at least 200 deg C (about 400 deg F). Some sizes may be available with tapered bores (K). Depending upon design, stamped steel or machined brass cages are used. Commonly used in gearboxes, wind turbines, pumps, mining/construction, marine propulsion and drilling equipment.
NACHI Spherical Roller Bearing, Series: 23000, 170 mm Bore, 260 mm OD, 2 Rows, 67 mm Width, Open Closure, 880000 N Dynamic/1080000 N Static Load, Steel Alloy Bearing, Pressed Steel Cage, 1800 rpm Grease/2300 rpm Oil Maximum, 400 deg F
SPECIFICATIONS
| Bearing Material | : | Steel Alloy |
| Load Capacity | : | 880000 N Dynamic/1080000 N Static |
| Maximum Speed | : | 1800 rpm Grease/2300 rpm Oil |
| Outside Diameter | : | 260 mm |
| Number of Rows | : | 2 |
| Inside Diameter | : | 170 mm |
| Mounted | : | No |
| Measurement System | : | Metric |
| Width | : | 67 mm |
DOCUMENTS
-
Owners/User Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/127/NACHI_16004C3_User_Manual.pdf
