XJ0005

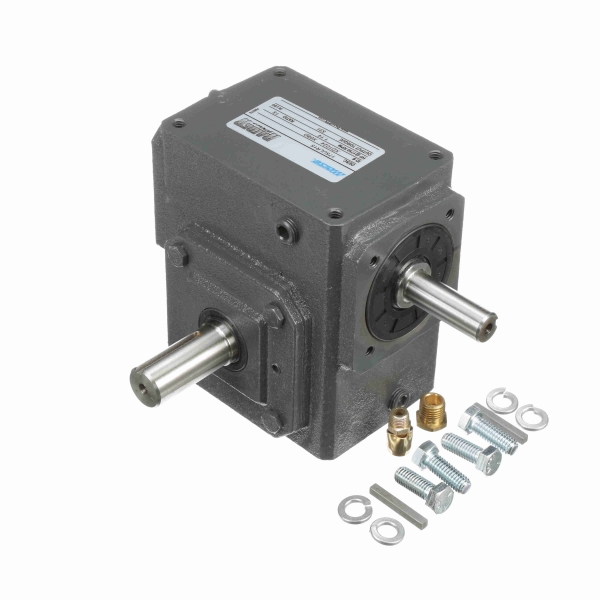

Morse® Raider® Plus XJ0005 Single Reduction Standard Worm Gear Reducer, Universal Shaft-In Input, Left Hand Output, 1 hp, 20:1 Gear Ratio, 87.5 rpm Maximum Output, 188.35 in-lb Input/87.5 in-lb Output Torque Rating
- CP#:
- Item#: 375UL20
- Mfr#: XJ0005
- UPC: 662288363392
- Rugged cast iron housing provides maximum strength and dependability
- Integral worm and shaft are hardened to 58RC for extra strength
- Tapered roller bearings on input and output shafts absorbs radial and thrust loads
- Forged or cast bronze worm gears provides optimum balance of strength and wear resistance
- Heavy duty tapered roller bearings on all output shafts
- Modular worm gear design provides over 10 million configurations from stock components
- Double sealing capability on input and output shafts
- Dimensionally interchangeable with major industry competitors
- 8810 offers further improvement to the standard chain series 881
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style (U style, shaft input) with an output shaft and the C-face style (Q style, input quill) with an output shaft. Both the U and Q styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 20:1 Gear Ratio, 1 hp, Universal Shaft-In Input, Left Hand Output, 1 in Dia x 2.91 in L Input, 1-5/8 in Dia x 3-1/2 in L Output, 87.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 188.35 in-lb Input/87.5 in-lb Output, 3-3/4 in Centre Distance, Polyglycol Oil Lubrication, Direct/Universal Mount, Cast Iron, 14.12 in L x 11.88 in W x 10.44 in H
SPECIFICATIONS
| Input Size | : | 1 in Dia x 2.91 in L |
| Material | : | Cast Iron |
| Mounting Type | : | Direct/Universal |
| Output Size | : | 1-5/8 in Dia x 3-1/2 in L |
| Input Type | : | Universal Shaft-In |
| Output Type | : | Left Hand |
| Gear Ratio | : | 20:1 |
| Type | : | Single Reduction Standard |
| Dimensions | : | 14.12 in L x 11.88 in W x 10.44 in H |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Polyglycol Oil |
| Centre Distance | : | 3-3/4 in |
| Horsepower | : | 1 hp |
| Output Maximum Speed | : | 87.5 rpm |
| Torque Rating | : | 188.35 in-lb Input/87.5 in-lb Output |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_XA0003_Manual.pdf -
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_XB3024_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_XJ0003_Specification_Sheet.pdf
