XB1114

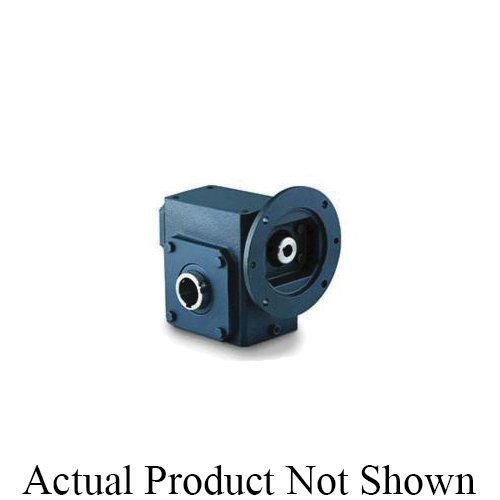

Morse® Raider® Plus XB1114 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Hollow Output, 1 hp, 15:1 Gear Ratio, 116.6 rpm Maximum Output, 23.12 in-lb Input/116.6 in-lb Output Torque Rating
- CP#:
- Item#: 133Q56H15
- Mfr#: XB1114
- UPC: 662288338079
- Rugged cast iron housing provides maximum strength and dependability
- High lead angle worm is case hardened, ground and polished
- Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
- Forged bronze worm gears provide optimum balance of strength and wear
- Heavy duty tapered roller bearings on all output shafts
- 56C motor frame size
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.
Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 15:1 Gear Ratio, 1 hp, C-Face Quilled Input, Hollow Output, 5/8 in Dia Input, 5/8 in ID Output, 116.6 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 23.12 in-lb Input/116.6 in-lb Output, 1.33 in Centre Distance, 3/16 x 3/32 in Input/3/16 x 1-1/2 in Output Keyway, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 6.07 in L x 4.75 in W x 4.66 in H
SPECIFICATIONS
| Input Size | : | 5/8 in Dia |
| Material | : | Cast Iron |
| Mounting Type | : | Direct/Floor |
| Output Size | : | 5/8 in ID |
| Input Type | : | C-Face Quilled |
| Output Type | : | Hollow |
| Gear Ratio | : | 15:1 |
| Type | : | Single Reduction Standard |
| Dimensions | : | 6.07 in L x 4.75 in W x 4.66 in H |
| Efficiency | : | 80 % |
| Keyway Size | : | 3/16 x 3/32 in Input/3/16 x 1-1/2 in Output |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Polyglycol Oil |
| Centre Distance | : | 1.33 in |
| Horsepower | : | 1 hp |
| Output Maximum Speed | : | 116.6 rpm |
| Torque Rating | : | 23.12 in-lb Input/116.6 in-lb Output |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_237Q140R30_Catalog.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_237Q140R30_Manual.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_237Q56H10107_Specification_Sheet.pdf
