MK4473

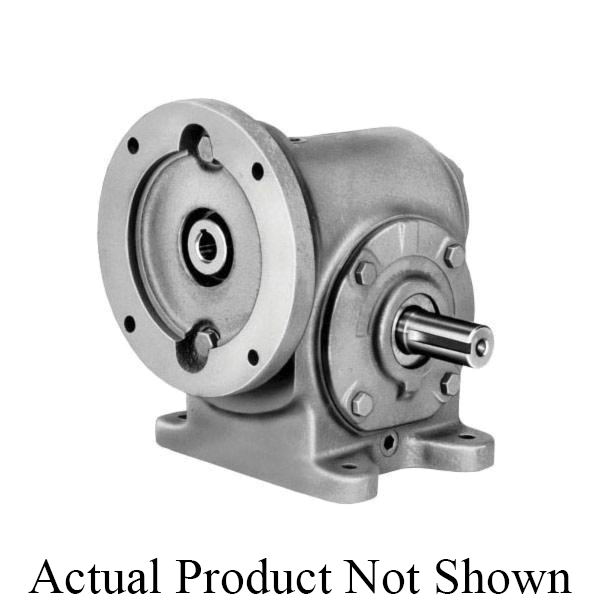

Morse® POWERGEAR® MK4473 GCT Single Reduction Worm Gear Reducer, C-Face Quilled Input, Left and Right Output, 1/1.44 hp, 15:1 Gear Ratio, 116.7 rpm Maximum Output, 663 in-lb Output Torque Rating
- CP#:
- Item#: 20GCT 15 LR 56C
- Mfr#: MK4473
- UPC: 662288087137
- Foot mounted with double shaft output
- 56C mounting frame
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The GC models are C-face reducers. The GCT style has a horizontal shaft. The GCV style has a vertical output shaft. The GCBD is double reduction "B" style unit and the GCDV is a double reduction "V" style unit. The C-face reducers are offered in eight sizes for use with motors from 1/6 hp through 15 hp. The design permits attaching standard NEMA® "C" flange, end mounted, motors of any brand.
Morse® POWERGEAR® Worm Gear Reducer, Single Reduction, Series: GCT, 15:1 Gear Ratio, 1/1.44 hp, C-Face Quilled Input, Left and Right Output, 5/8 in Input, 1 in OD x 2-1/4 in L Output, 116.7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 663 in-lb Output, 2 in Centre Distance, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 7.625 in L x 9.75 in W x 8.813 in H
SPECIFICATIONS
| Input Size | : | 5/8 in |
| Material | : | Cast Iron |
| Mounting Type | : | Direct/Floor |
| Output Size | : | 1 in OD x 2-1/4 in L |
| Series | : | GCT |
| Input Type | : | C-Face Quilled |
| Output Type | : | Left and Right |
| Gear Ratio | : | 15:1 |
| Type | : | Single Reduction |
| Dimensions | : | 7.625 in L x 9.75 in W x 8.813 in H |
| Input Maximum Speed | : | 1750 rpm |
| Lubrication Type | : | Polyglycol Oil |
| Centre Distance | : | 2 in |
| Horsepower | : | 1/1.44 hp |
| Output Maximum Speed | : | 116.7 rpm |
| Torque Rating | : | 663 in-lb Output |
DOCUMENTS
-
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_6GWPF175_Manual.pdf
