466301

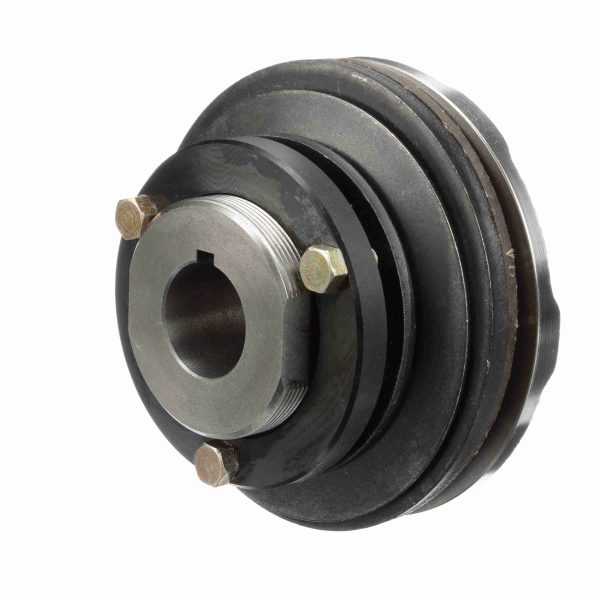

Morse® 466301 700A Torque Limiter, 1-1/2 in Finished Bore, 7 in OD, 85 to 420 ft-lb Torque
- CP#:
- Item#: 700A-1 TL 1-1/2 FB
- Mfr#: 466301
- UPC: 662288479147
- Easy adjustment
- Wide torque range
- Minimum maintenance
- Safe, non-asbestos and no-lead pads
- Replacement parts in stock
- Friction facing
- Unit limits overloads or machine jams
- Adjustable spring pressure determines overload setting and automatically reengages drive when overload condition subsides
- Unit can be used with a sprocket, gear, sheave/flange plate as the center member between the two friction facings
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device
- The load on the friction pads is adjusted so that process torque is transmitted
- An overload causes the unit to slip
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Morse®Torque Limiter is a spring loaded friction style torque overload device. The load on the friction pads is adjusted so that the process torque is transmitted. An overload torque in excess of the set torque causes the unit to slip. This prevents overloads from transmitting through the system. When the load falls below the set level, the torque limiter stops slipping and transmits the torque. A torque limiter does not maintain phase between input and output. The Morse® torque limiter is well suited for applications that trip more frequently by design compared to the Browning® torque limiter. It can be used in a chain drive with a specially machined sprocket inserted between the friction pads acting as the slip interface.
Morse® Torque Limiter, Series: 700A, Finished Bore, 1-1/2 in Bore Dia, 7 in Outside Dia, 3-7/8 in Overall Length, 85 to 420 ft-lb, 1000 rpm Maximum, 3/8 in W x 3/16 in D Keyway
SPECIFICATIONS
| Keyway Size | : | 3/8 in W x 3/16 in D |
| Maximum Speed | : | 1000 rpm |
| Overall Length | : | 3-7/8 in |
| Series | : | 700A |
| Bore Diameter | : | 1-1/2 in |
| Bore Type | : | Finished |
| Outside Diameter | : | 7 in |
| Torque Rating | : | 85 to 420 ft-lb |
