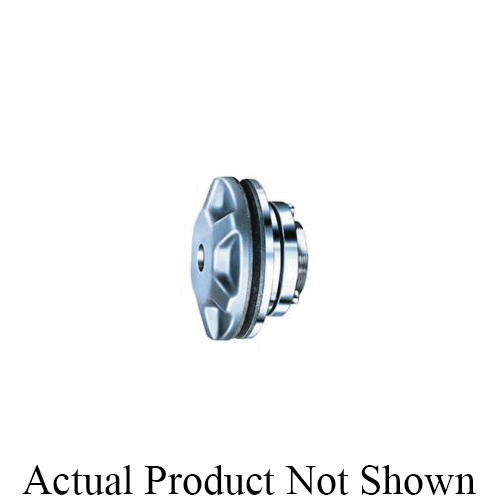

Morse® 466300 TL Series Torque Limiter, 1 in Straight Bore, 7 in OD, 85 to 420 in-lb Torque
- CP#:
- Item#: 700A-1 TL MPB 1
- Mfr#: 466300
- UPC: 662288479130
- Economical, compact, dependable and durable
- Easy adjustment
- Wide torque range
- Minimum maintenance
- Safe, non-asbestos, no-lead pads
- Friction facings
- Model 700A
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Morse torque limiter is a spring loaded device
- The load on the friction pads is adjusted so that process torque is transmitted
- An overload causes the unit to slip
- Morse torque limiters are simple design, economical, easy adjustment, compact and dependable
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The Morse® torque limiter is a protective device that limits torque transmitted in a drive system by slipping when the torque demand exceeds a preset value as a result of shock loads, overloads or machine jams. It automatically re-engages when the overload torque has passed, no resetting is required. The Morse® torque limiter helps prevent machine damage and eliminates costly downtime. Using spring loaded friction surfaces for its operation, the Morse® torque limiter presets slip torque by adjustment of the spring force. This device can be used with a sprocket, gear, sheave or flange plate as the center member that is clamped between two friction facings.
Morse® Torque Limiter, Series: TL Series, Straight Bore, 1 in Bore Dia, 7 in Outside Dia, 3-7/8 in Overall Length, 85 to 420 in-lb, 1000 rpm Maximum, 48 Stock/MTO (NO. 40 Chain), 40 Stock/39 MTO (NO. 50 Chain), 35 Stock/33 MTO (NO. 60 Chain), 26 Stock/MTO (NO. 80 Chain), 21 Stock/MTO (NO. 100 Chain), 18 Stock/MTO (NO. 120 Chain), 16 Stock/MTO (NO. 140 Chain), 15 Stock/MTO (NO. 160 Chain) Minimum Sprocket Teeth
SPECIFICATIONS
| Maximum Speed | : | 1000 rpm |
| Minimum Sprocket Teeth | : | 48 Stock/MTO (NO. 40 Chain), 40 Stock/39 MTO (NO. 50 Chain), 35 Stock/33 MTO (NO. 60 Chain), 26 Stock/MTO (NO. 80 Chain), 21 Stock/MTO (NO. 100 Chain), 18 Stock/MTO (NO. 120 Chain), 16 Stock/MTO (NO. 140 Chain), 15 Stock/MTO (NO. 160 Chain) |
| Overall Length | : | 3-7/8 in |
| Series | : | TL Series |
| Bore Diameter | : | 1 in |
| Bore Type | : | Straight |
| Outside Diameter | : | 7 in |
| Torque Rating | : | 85 to 420 in-lb |
DOCUMENTS
-
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_108763_Specification_Sheet.pdf -
Manual https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_465700_Manual.pdf
