Morse®
329947

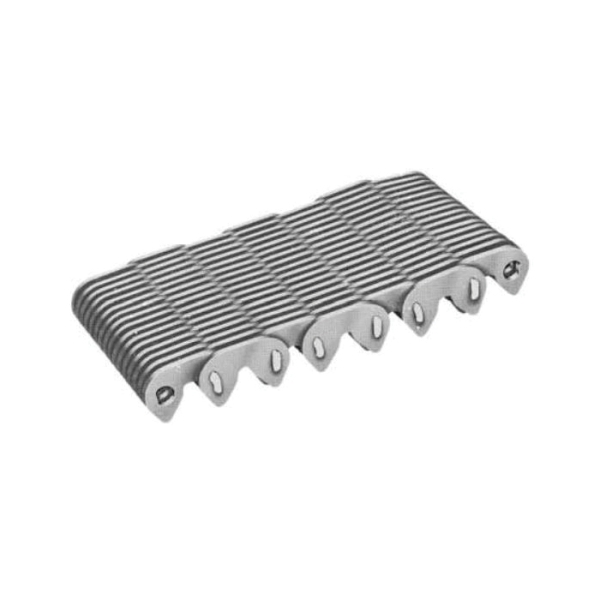

Morse® 329947 Inverted Tooth Silent Chain With Center Guides, 10 ft OAL, 3/4 in Pitch, Steel
- Item#: SC608 CG 10FT
- Mfr#: 329947
- UPC: 662288466246
- 99% efficient drives
- Simple design
- Economical, long life and space saver
- Reduced bearing loads
- Smooth, quiet and cool drive
- Not affected by atmospheric conditions
- High speed
- Minimum maintenance
- Adaptable to speed changes
- Positive drive, no slip
- Wide speed and hp range
- Transmit power at speeds up to 10000 rpm
- Pin and rocker joint design minimizes heat and wear rates
- Superior for power transmission
- Industry standard design for interchangeability on existing sprockets
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Morse® silent chain is an inverted tooth type drive offering particularly smooth, quiet power transmission at higher speeds up to 5000 fpm. The exclusive Morse® rocker joint eliminates friction during chain articulation, permitting high rotative speed with less wear and heat.
Morse® Silent Chain, Inverted Tooth, 3/4 in Pitch, 2.2 in Pin Length, 0.795 in Plate Height, 2 Strands, 22500 lb Tensile Strength, 10 ft Overall Length, Steel
SPECIFICATIONS
| Number of Strands | : | 2 |
| Pin Length | : | 2.2 in |
| Plate Height | : | 0.795 in |
| Tensile Strength | : | 22500 lb |
| Type | : | Inverted Tooth |
| Overall Length | : | 10 ft |
| Pitch | : | 3/4 in |
| Material | : | Steel |
