- Morse® 2363257
2363257

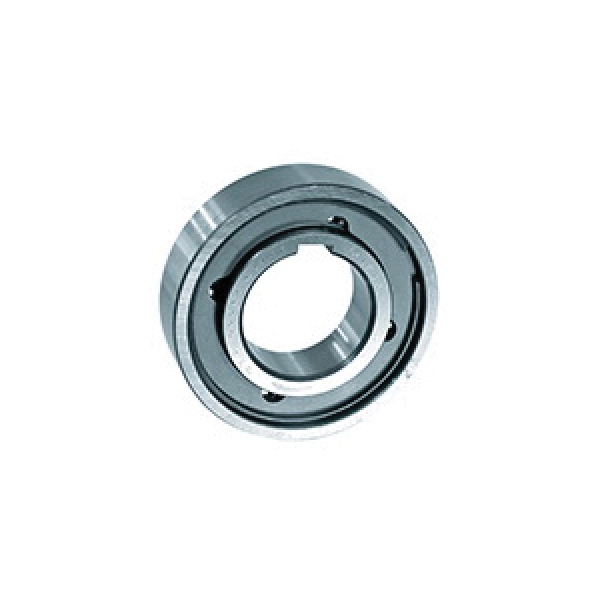

Morse® 2363257 NSS Cam Clutch, 30 mm Dia Bore, 62 mm OD, 105 N-m Torque, 1800 rpm Inner Race/900 rpm Outer Race Max
- CP#:
- Item#: NSS-30 CLUTCH
- Mfr#: 2363257
- UPC: 662460387697
- Created with an inner race containing a key-seat and an outer race that press fits in housing
- Sprag type one way clutch
- High torque and longer life than roller ramp clutches
- Overrunning speed is higher than roller ramp clutches
- Clutch is furnished with protective oil and must be lubricated before installation
- NSS series clutch is excellent for applications where space is restricted
- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing
- Manufactured with an inner race containing a key seat and out race containing key slots
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The NSS® series clutch is available in 12 sizes. It's designed with the same overall dimensions as a light metric series ball bearing. The inner race contains a key seat and the outer race contains a key slot. The bore of the clutch is metric and must be installed with ball bearing support. The outer race of the clutch is designed for press fit installation to the housing.
Morse® Cam Clutch, Series: NSS, 30 mm Bore, 62 mm OD, 16 mm Overall Length, 105 N-m Torque, 1800 rpm Inner Race/900 rpm Outer Race Maximum
SPECIFICATIONS
| Overall Length | : | 16 mm |
| Series | : | NSS |
| Bore Diameter | : | 30 mm |
| Outside Diameter | : | 62 mm |
| Torque Rating | : | 105 N-m |
| Maximum Speed | : | 1800 rpm Inner Race/900 rpm Outer Race |
