- Morse® 2363133
2363133

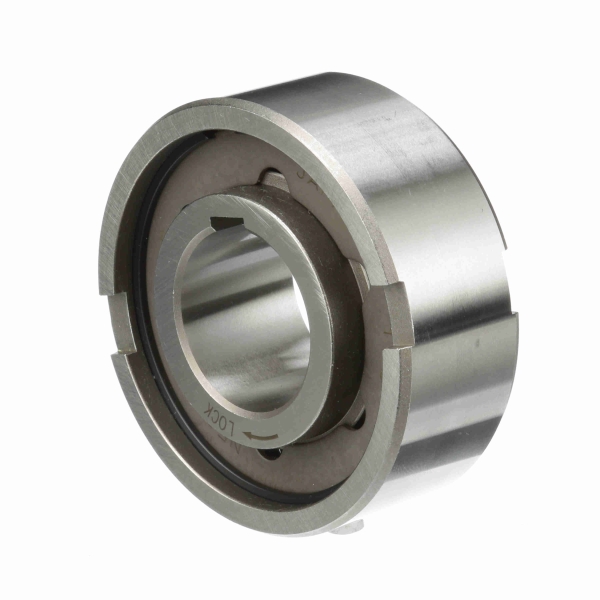

Morse® 2363133 NFS Cam Clutch, 30 mm Dia Bore, 72 mm OD, 200 N-m Torque, 1600 rpm Inner Race/800 rpm Outer Race Max
- CP#:
- Item#: NFS-30 CLUTCH
- Mfr#: 2363133
- UPC: 662460387574
- Manufactured with an inner race containing a key seat and an outer race containing key slots
- Sprag type one way clutch
- High torque and longer life than roller ramp clutches
- Overrunning speed is higher than roller ramp clutches
- Clutch is furnished with protective oil and must be lubricated before installation
- NFS clutch is commonly used in an application where reverse rotation must be prevented
- Morse Mechanical Clutches offer the most complete and versatile selection of backstop, overriding, and index Clutches in the industry
- The NFS Sprag one way clutch is designed with the same overall dimensions as medium series metric ball bearing
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The NFS® series clutch is available in 13 sizes. It's designed with the same overall dimensions as a light metric series ball bearing. The inner race contains a key seat and the outer race contains a key slot. The bore of the clutch is metric and must be installed with ball bearing support. The outer race of the clutch is designed for press fit installation to the housing.
Morse® Cam Clutch, Series: NFS, 30 mm Bore, 72 mm OD, 27 mm Overall Length, 200 N-m Torque, 1600 rpm Inner Race/800 rpm Outer Race Maximum
SPECIFICATIONS
| Overall Length | : | 27 mm |
| Series | : | NFS |
| Bore Diameter | : | 30 mm |
| Outside Diameter | : | 72 mm |
| Torque Rating | : | 200 N-m |
| Maximum Speed | : | 1600 rpm Inner Race/800 rpm Outer Race |
