- Morse® 127741
127741

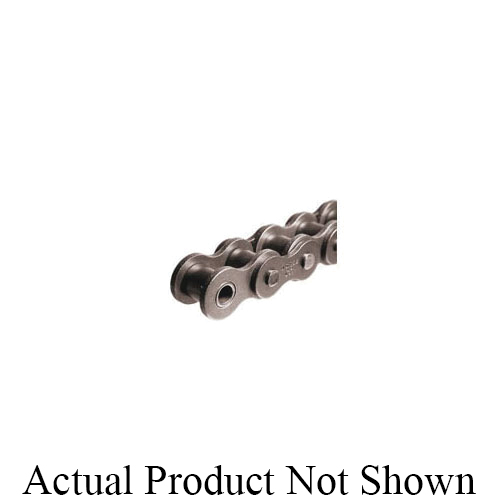

Morse® 127741 Riveted Standard Duty Roller Chain, 10 ft OAL, 1-1/2 in Pitch, 7/8 in Dia x 1 in W Roller, Steel
- CP#:
- Item#: 120R 10FT
- Mfr#: 127741
- UPC: 662288395300
- Created for applications requiring high horsepower at low speeds
- Far exceeds ANSI performance standard
- Rigid manufacturing processes result in a fully-featured chain
- Unmatched quality and performance
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Morse® markets roller chain featuring greater resistance and increased endurance limit. Morse® shot-peens its rollers to create a favorable state of compression residual stress on the surface. This process eliminates surface cracks and blemishes. The chain offered meets the standards required in the marketplace for many applications.
Morse® Roller Chain, Riveted Standard Duty, 1-1/2 in Pitch, 0.437 in Pin Diameter, 1.96 in Pin Length, 7/8 in Roller Diameter, 1 in Roller Width, 1.4 in Plate Height, 0.187 in Plate Thickness, 1 Links, 1 Strands, 34000 lb Tensile Strength, 10 ft Overall Length, Steel
SPECIFICATIONS
| Chain Size | : | #120 |
| Number of Strands | : | 1 |
| Pin Diameter | : | 0.437 in |
| Overall Length | : | 10 ft |
| Pitch | : | 1.5 in |
| Material | : | Steel |
| Plate Height | : | 1.4 in |
| Type | : | Riveted Standard Duty |
| Plate Thickness | : | 0.187 in |
| Tensile Strength | : | 34000 lb |
| Number of Links | : | 1 |
| Pin Length | : | 1.96 in |
| Roller Diameter | : | 7/8 in |
| Roller Width | : | 1 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_099650_Catalog.pdf
