An oil reservoir attachment is available for applications such as backstops on the high speed shaft of a reducer, backstops on the head shaft of conveyors and applications where clutches are relatively inaccessible or where minimum maintenance is required. The reservoir is designed for direct mounting on any stock MG clutch. Reservoirs can only be used where the clutch is in backstop service (inner race overrunning). Since the direction of rotation cannot always be specified, clutches are shipped with oil seals in both ends of the clutch. When attaching the reservoir to the clutch, the user should remove the oil seal on the reservoir side after determining the proper direction of rotation of the clutch. This seal should not be reused because it is damaged by the removal process. The reservoir is an aluminum casting with cooling fins and has an oil sight gauge.

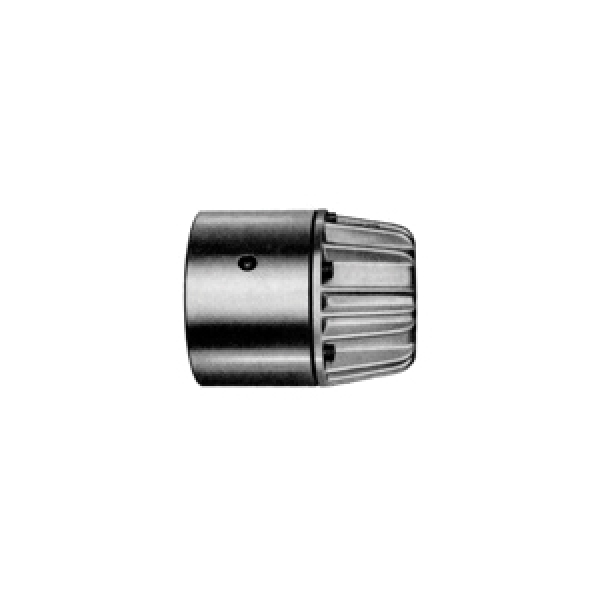

Morse® Oil Reservoir, For Use With: M Series 500A 2400 rpm Clutch

•
  Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Morse_100594_Catalog.pdf
