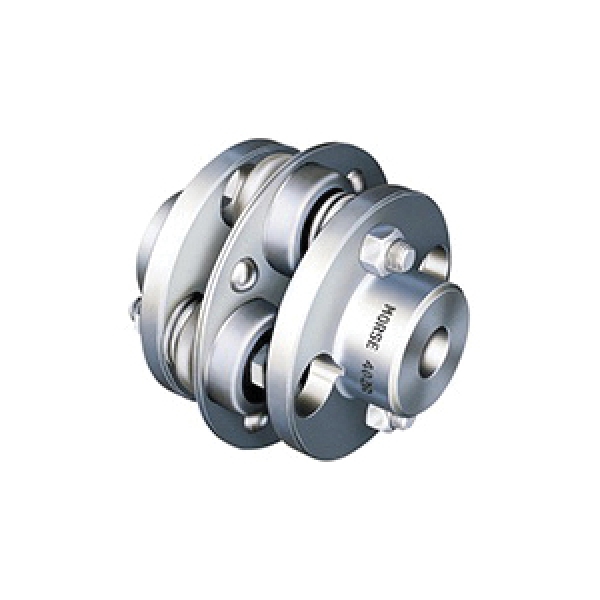

Morse® Morflex® 012637 Plain Bore Round Flange Flexible Coupling, 1/2 in Dia Bore, 5.063 in OD, 4-7/8 in OAL, 84 ft-lb Torque, 5300 rpm Max
The Morflex® coupling, a proven winner, can compensate for high angular misalignment and is torsionally flexible. Misalignment working angles range from 1.5 to 10 deg, making the Morflex® a unique resilient coupling.
Morse® Morflex® Flexible Coupling, Plain Bore Round Flange, 1/2 in Bore, 5.063 in OD, 4-7/8 in Overall Length, 2-1/4 in Dia Hub, 1-1/2 in Length Through Bore, 84 ft-lb Torque, 5300 rpm Maximum, 200 deg F, Zinc Plated
Finish | : | Zinc Plated |
Hub Size | : | 2-1/4 in Dia |
Length Through Bore | : | 1-1/2 in |
Temperature Rating | : | 200 deg F |
Type | : | Plain Bore Round Flange |
Bore Diameter | : | 1/2 in |
Outside Diameter | : | 5.063 in |
Overall Length | : | 4-7/8 in |
Torque Rating | : | 84 ft-lb |
Maximum Speed | : | 5300 rpm |
