5452650000

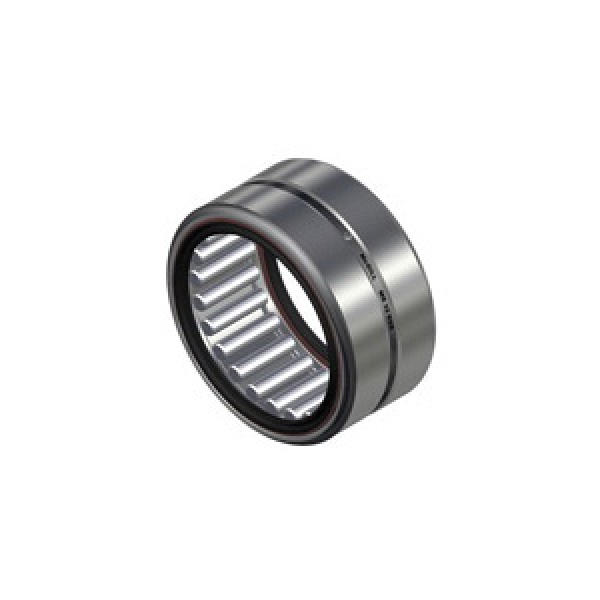

McGill® CAGEROL® 5452650000 MR Series Heavy Duty Standard Unmounted Needle Roller Bearing, 1-5/8 in Dia Bore, 2-3/16 in OD, 1 Rows, 1-1/4 in W, 10600 lb Dynamic/16400 lb Static Load
- CP#:
- Item#: MR 26 RSS
- Mfr#: 5452650000
- UPC: 726166066604
- Machined outer race
- Needle roller with end relief
- Annular lubrication groove and holes
- Factory grease fill
- Double seal with both seal lips turned out
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
McGill® CAGEROL® machined race needle bearings are manufactured from bearing quality steel. Most sizes use crowned or end relieved, rollers to help reduce end stresses and allows for greater misalignment. The rollers are separated by a steel retainer (cage) to help achieve higher speeds and provide a lubricant reservoir. CAGEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.
McGill® CAGEROL® Unmounted Needle Roller Bearing, Heavy Duty Standard, Series: MR Series, 1-5/8 in Bore, 2-3/16 in OD, 1 Rows, 1-1/4 in Width, Double Seal Closure, 10600 lb Dynamic/16400 lb Static Load, 52100 Steel Bearing, Rubber Seal, Steel Cage, 2350 rpm Maximum, -20 to 250 deg F
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/McGill_0304046000_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/McGill_5452200000_Specification_Sheet.pdf
