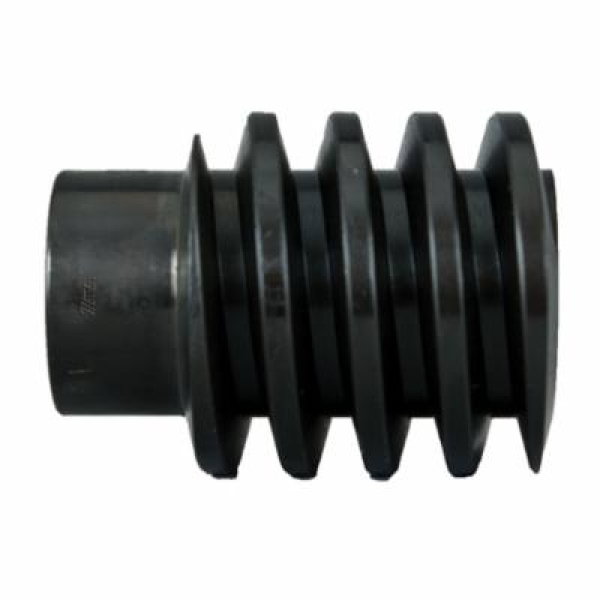

Martin WH6 Bored-to-Size Helix Angle Worm, 6 Diametral Pitch, 14.5 deg Pressure Angle, Single Threads, Right Hand Rotation, 2 in Dia Pitch, 7/8 in Dia Bore, 2-1/2 in W Face, 4 deg Lead Angle, Steel
- CP#:
- Item#: WH6
- Mfr#: WH6
- UPC: 697950050232
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Helix Angle Worm, Bored-to-Size, 7/8 in Bore, 2.333 in OD, Single Threads, 6 Diametral Pitch, 2 in Pitch Diameter, 2-1/2 in Face Width, 4 deg Lead Angle, Right Hand Direction of Rotation, 1.563 in Diameter Hub, 3/4 in Hub Projection, 3-1/4 in Overall Length, 14.5 deg Pressure Angle, Steel
SPECIFICATIONS
| Hub Diameter | : | 1.563 in |
| Hub Projection | : | 3/4 in |
| Outside Diameter | : | 2.333 in |
| Overall Length | : | 3-1/4 in |
| Type | : | Bored-to-Size |
| Diametral Pitch | : | 6 |
| Pressure Angle | : | 14.5 deg |
| Number of Threads | : | Single |
| Direction of Rotation | : | Right Hand |
| Pitch Diameter | : | 2 in |
| Bore Diameter | : | 7/8 in |
| Face Width | : | 2-1/2 in |
| Lead Angle | : | 4 deg |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_W1020_Catalog.pdf
