WB1220D

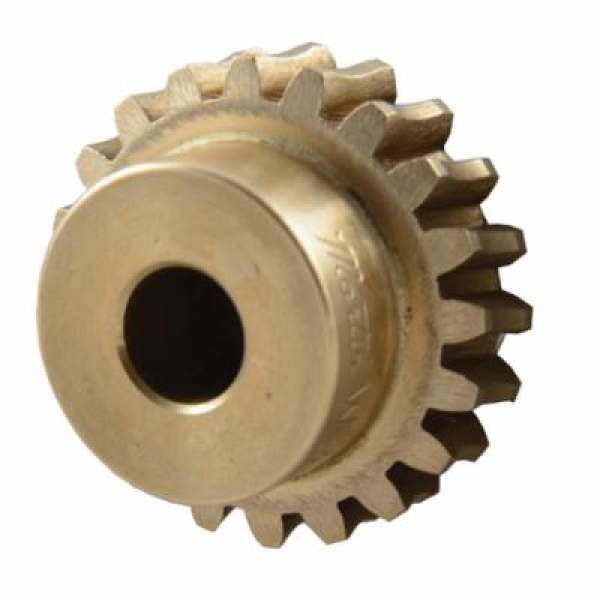

Martin WB1220D Plain Reborable Worm Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, Double Threads, Right Hand Rotation, 20 Teeth, 1.666 in Dia Pitch, 0.5 to 0.626 in Dia Bore, 1/2 in W Face, Bronze

  • Item#: WB1220D
  • Mfr#: WB1220D
  • UPC: 697950051109
    • Commercial Class Gear. AGMA 6-8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.

Martin Worm Gear, Plain Reborable, 0.5 to 0.626 in Bore Dia, 1.853 in Outside Dia, Double Number of Threads, 20 Teeth, 12 Diametral Pitch, 1.666 in, 1/2 in Face Width, Right Hand Direction of Rotation, 1-1/4 in Hub Dia, 1/2 in Hub Projection, 1 in Overall Length, 14.5 deg Pressure Angle, Bronze

SPECIFICATIONS

Hub Diameter      :      1-1/4 in
Hub Projection      :      1/2 in
Outside Diameter      :      1.853 in
Overall Length      :      1 in
Type      :      Plain Reborable
Diametral Pitch      :      12
Pressure Angle      :      14.5 deg
Number of Threads      :      Double
Direction of Rotation      :      Right Hand
Number of Teeth      :      20
Pitch Diameter      :      1.666 in
Bore Diameter      :      0.5 to 0.626 in
Face Width      :      1/2 in
Material      :      Bronze

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_W1020_Catalog.pdf
