W908M60-E

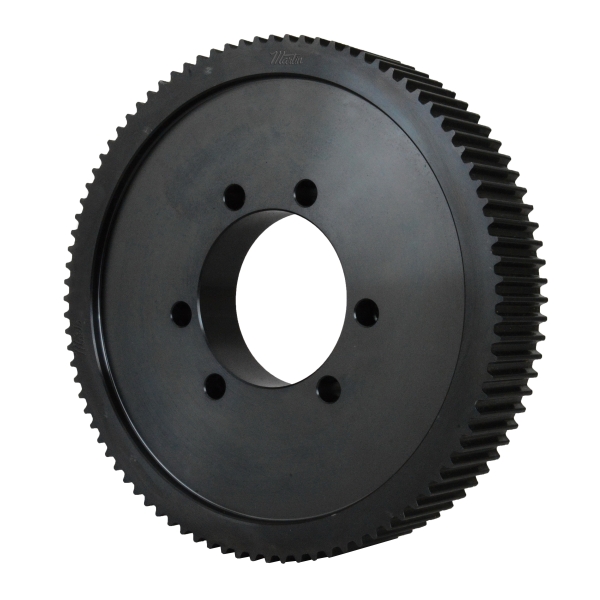

Martin HTS® W908M60-E Solid Type AF-1 High HP High Torque Sprocket, 7/8 to 3-1/2 in QD® Bushed Bore, 8.966 in OD, 90 Grooves, 9.023 in Dia Pitch, 2.756 in W Face
- CP#:
- Item#: W908M60-E
- Mfr#: W908M60-E
- UPC: 697950933238
- Highest HP drives and narrower than HTS
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High HP High Torque Sprocket, Solid Type AF-1, QD® Bushed Bore, 7/8 to 3-1/2 in Bore Dia, 8.966 in Outside Dia, 9.023 in, 90 Grooves, 0.31496 in Pitch, 2.756 in Face Width, E Bushing, 2.756 in Overall Length, For Use With: Hawk Pd®, Panter® and QT Power Chain® Belts, Steel
SPECIFICATIONS
| Bushing Type | : | E |
| Material | : | Steel |
| Pitch | : | 0.31496 in |
| Overall Length | : | 2.756 in |
| Bore Diameter | : | 7/8 to 3-1/2 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 8.966 in |
| Number of Grooves | : | 90 |
| Pitch Diameter | : | 9.023 in |
| Face Width | : | 2.756 in |
| Type | : | Solid Type AF-1 |
| Suitable For Use With | : | Hawk Pd®, Panter® and QT Power Chain® Belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
