W848

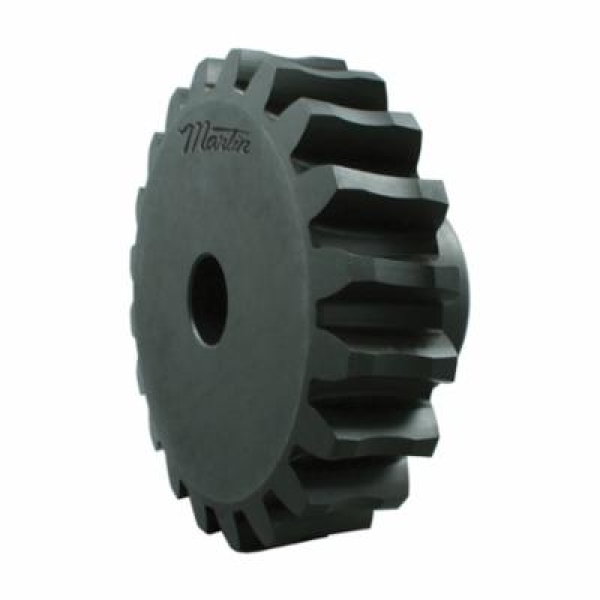

Martin W848 Reborable Web Worm Gear, 8 Diametral Pitch, 14.5 deg Pressure Angle, Single Threads, Right Hand Rotation, 48 Teeth, 6 in Dia Pitch, 1 to 1.439 in Dia Bore, 3/4 in W Face, Cast Iron
- CP#:
- Item#: W848
- Mfr#: W848
- UPC: 697950050492
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Worm Gear, Reborable Web, 1 to 1.439 in Bore Dia, 6.28 in Outside Dia, Single Number of Threads, 48 Teeth, 8 Diametral Pitch, 6 in, 3/4 in Face Width, Right Hand Direction of Rotation, 2-3/8 in Hub Dia, 3/4 in Hub Projection, 1-5/8 in Overall Length, 14.5 deg Pressure Angle, Cast Iron
SPECIFICATIONS
| Hub Diameter | : | 2-3/8 in |
| Hub Projection | : | 3/4 in |
| Outside Diameter | : | 6.28 in |
| Overall Length | : | 1-5/8 in |
| Type | : | Reborable Web |
| Diametral Pitch | : | 8 |
| Pressure Angle | : | 14.5 deg |
| Number of Threads | : | Single |
| Direction of Rotation | : | Right Hand |
| Number of Teeth | : | 48 |
| Pitch Diameter | : | 6 in |
| Bore Diameter | : | 1 to 1.439 in |
| Face Width | : | 3/4 in |
| Material | : | Cast Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_W1020_Catalog.pdf
