W6814M65-F

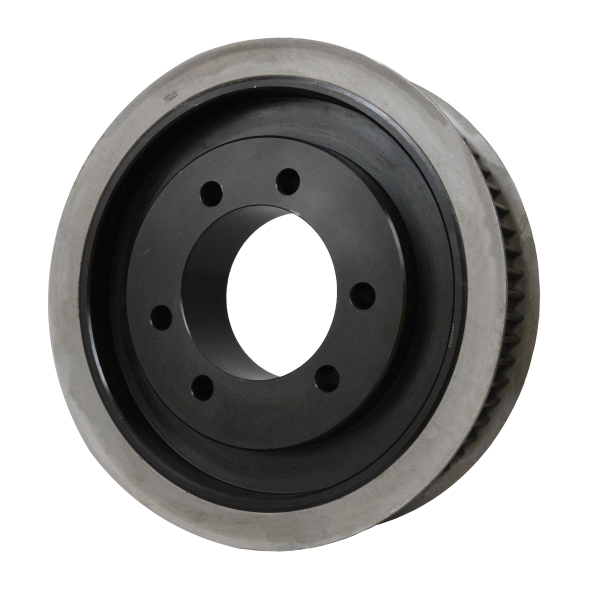

Martin HTS® W6814M65-F Web Type CF-2 High HP High Torque Sprocket, 1 to 4 in QD® Bushed Bore, 11.823 in OD, 68 Grooves, 11.93 in Dia Pitch, 3.032 in W Face
- CP#:
- Item#: W6814M65-F
- Mfr#: W6814M65-F
- UPC: 697950908588
- Highest HP drives and narrower than HTS
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High HP High Torque Sprocket, Web Type CF-2, QD® Bushed Bore, 1 to 4 in Bore Dia, 11.823 in Outside Dia, 11.93 in, 68 Grooves, 0.55118 in Pitch, 3.032 in Face Width, 12-1/2 in Flange Dia, F Bushing, 3-5/8 in Overall Length, For Use With: Hawk Pd®, Panter® and QT Power Chain® Belts, Steel
SPECIFICATIONS
| Bushing Type | : | F |
| Material | : | Steel |
| Pitch | : | 0.55118 in |
| Overall Length | : | 3-5/8 in |
| Bore Diameter | : | 1 to 4 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 11.823 in |
| Number of Grooves | : | 68 |
| Pitch Diameter | : | 11.93 in |
| Face Width | : | 3.032 in |
| Type | : | Web Type CF-2 |
| Flange Diameter | : | 12-1/2 in |
| Suitable For Use With | : | Hawk Pd®, Panter® and QT Power Chain® Belts |
