W6414M90-F

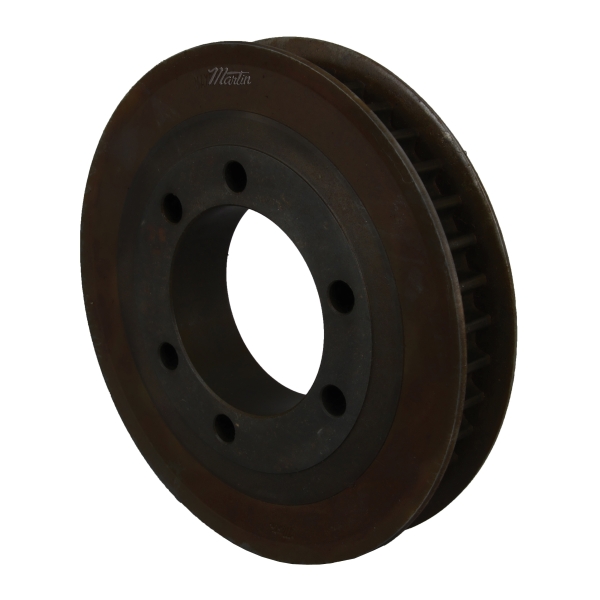

Martin HTS® W6414M90-F Solid Type DF-1 High HP High Torque Sprocket, 1 to 4 in QD® Bushed Bore, 11.121 in OD, 64 Grooves, 11.229 in Dia Pitch, 4.055 in W Face
- CP#:
- Item#: W6414M90-F
- Mfr#: W6414M90-F
- UPC: 697950914428
- Highest HP drives and narrower than HTS
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High HP High Torque Sprocket, Solid Type DF-1, QD® Bushed Bore, 1 to 4 in Bore Dia, 11.121 in Outside Dia, 11.229 in, 64 Grooves, 0.55118 in Pitch, 4.055 in Face Width, 11-3/4 in Flange Dia, F Bushing, 4.402 in Overall Length, For Use With: Hawk Pd®, Panter® and QT Power Chain® Belts, Cast Iron
SPECIFICATIONS
| Bushing Type | : | F |
| Material | : | Cast Iron |
| Pitch | : | 0.55118 in |
| Overall Length | : | 4.402 in |
| Bore Diameter | : | 1 to 4 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 11.121 in |
| Number of Grooves | : | 64 |
| Pitch Diameter | : | 11.229 in |
| Face Width | : | 4.055 in |
| Type | : | Solid Type DF-1 |
| Flange Diameter | : | 11-3/4 in |
| Suitable For Use With | : | Hawk Pd®, Panter® and QT Power Chain® Belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
