W388M35-SH

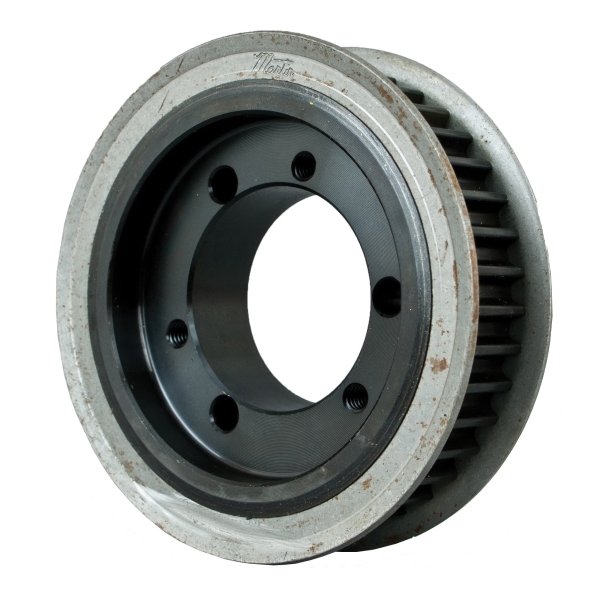

Martin HTS® W388M35-SH Solid Type AF-1 High HP High Torque Sprocket, 1/2 to 1-11/16 in QD® Bushed Bore, 3.756 in OD, 38 Grooves, 3.81 in Dia Pitch, 1.73 in W Face
- CP#:
- Item#: W388M35-SH
- Mfr#: W388M35-SH
- UPC: 697950879406
- Highest HP drives and narrower than HTS
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non slip toothed drives that require no lubrication. These sprockets have a wide speed range are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating pulley.
Martin HTS® High HP High Torque Sprocket, Solid Type AF-1, QD® Bushed Bore, 1/2 to 1-11/16 in Bore Dia, 3.756 in Outside Dia, 3.81 in, 38 Grooves, 8 mm Pitch, 1.73 in Face Width, 4.16 in Flange Dia, SH Bushing, 1.73 in Overall Length, For Use With: Hawk Pd®, Panter® and QT Power Chain® Belts, Steel
SPECIFICATIONS
| Bushing Type | : | SH |
| Material | : | Steel |
| Pitch | : | 8 mm |
| Overall Length | : | 1.73 in |
| Bore Diameter | : | 1/2 to 1-11/16 in |
| Bore Type | : | QD® Bushed |
| Outside Diameter | : | 3.756 in |
| Number of Grooves | : | 38 |
| Pitch Diameter | : | 3.81 in |
| Face Width | : | 1.73 in |
| Type | : | Solid Type AF-1 |
| Flange Diameter | : | 4.16 in |
| Suitable For Use With | : | Hawk Pd®, Panter® and QT Power Chain® Belts |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_P11214M115_4545_Specification_Sheet.pdf
