W368M22-SH

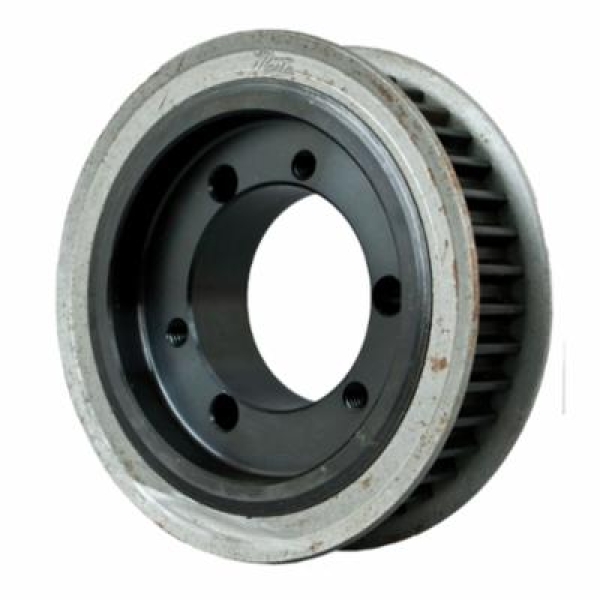

Martin HTS® W368M22-SH Solid Type DF-1 High Torque Belt Drive Sprocket, 1/2 to 1.688 in High HP Bushed Bore, 3.556 in OD, 36 Grooves, 3.609 in Dia Pitch, 0.97 in W Face
- CP#:
- Item#: W368M22-SH
- Mfr#: W368M22-SH
- UPC: 697950878966
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin HTS® High Torque Belt Drive Sprocket, Solid Type DF-1, High HP Bushed Bore, 1/2 to 1.688 in Bore Dia, 3.556 in Outside Dia, 3.609 in, 36 Grooves, 8 mm Pitch, 0.97 in Face Width, 3.938 in Flange Dia, SH Bushing, 1.313 in Overall Length, Steel
SPECIFICATIONS
| Bushing Type | : | SH |
| Material | : | Steel |
| Pitch | : | 8 mm |
| Overall Length | : | 1.313 in |
| Bore Diameter | : | 1/2 to 1.688 in |
| Bore Type | : | High HP Bushed |
| Outside Diameter | : | 3.556 in |
| Number of Grooves | : | 36 |
| Pitch Diameter | : | 3.609 in |
| Face Width | : | 0.97 in |
| Type | : | Solid Type DF-1 |
| Flange Diameter | : | 3.938 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_W1128M35-SF_Catalog.pdf
