W318

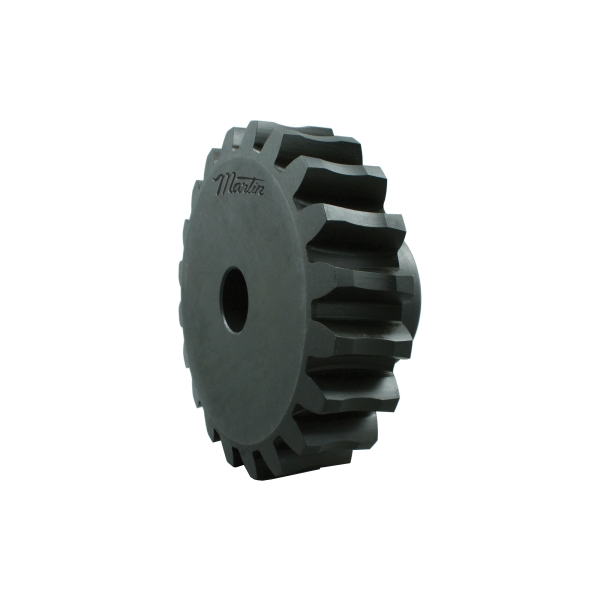

Martin W318 Reborable Web Worm Gear, 3 Diametral Pitch, 14.5 deg Pressure Angle, 1 Threads, Right Hand Rotation, 18 Teeth, 6 in Dia Pitch, 1 to 1.8145 in Dia Bore, 2 in W Face, Cast Iron
- CP#:
- Item#: W318
- Mfr#: W318
- UPC: 697950050089
- Precise machining and processes ensure consistent finish and high quality
- AGMA 6 to 8 commercial class gear
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Worms and worm gears are used to power right angle, non-intersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Worm Gear, Reborable Web, 1 to 1.8145 in Bore Dia, 6.748 in Outside Dia, 18:1 Gear Ratio, 1 Number of Threads, 18 Teeth, 3 Diametral Pitch, 6 in, 2 in Face Width, Right Hand Direction of Rotation, Type B, 3 in Hub Dia, 1-1/2 in Hub Projection, 14.5 deg Pressure Angle, 3/8 x 3/16 in Keyway, Cast Iron
SPECIFICATIONS
| Gear Ratio | : | 18:1 |
| Hub Diameter | : | 3 in |
| Hub Projection | : | 1-1/2 in |
| Hub Type | : | Type B |
| Keyway Size | : | 3/8 x 3/16 in |
| Outside Diameter | : | 6.748 in |
| Type | : | Reborable Web |
| Diametral Pitch | : | 3 |
| Pressure Angle | : | 14.5 deg |
| Number of Threads | : | 1 |
| Direction of Rotation | : | Right Hand |
| Number of Teeth | : | 18 |
| Pitch Diameter | : | 6 in |
| Bore Diameter | : | 1 to 1.8145 in |
| Face Width | : | 2 in |
| Material | : | Cast Iron |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_WG3_Catalog.pdf
