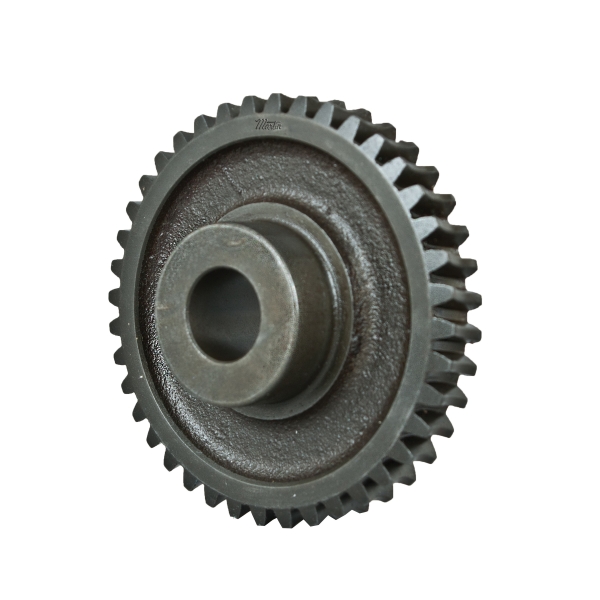

Martin W1260 Reborable Web Worm Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, 1 Threads, Right Hand Rotation, 60 Teeth, 5 in Dia Pitch, 0.625 to 0.9385 in Dia Bore, 1/2 in W Face, Cast Iron

  • Item#: W1260
  • Mfr#: W1260
  • UPC: 697950051031
    • Precise machining and processes ensure consistent finish and high quality
    • AGMA 6 to 8 commercial class gear
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Worms and worm gears are used to power right angle, non-intersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.

Martin Worm Gear, Reborable Web, 0.625 to 0.9385 in Bore Dia, 5.186 in Outside Dia, 60:1 Gear Ratio, 1 Number of Threads, 60 Teeth, 12 Diametral Pitch, 5 in, 1/2 in Face Width, Right Hand Direction of Rotation, Type B, 1-3/4 in Hub Dia, 3/4 in Hub Projection, 14.5 deg Pressure Angle, 1/8 x 1/16 in Keyway, Cast Iron

SPECIFICATIONS

Gear Ratio      :      60:1
Hub Diameter      :      1-3/4 in
Hub Projection      :      3/4 in
Hub Type      :      Type B
Keyway Size      :      1/8 x 1/16 in
Outside Diameter      :      5.186 in
Type      :      Reborable Web
Diametral Pitch      :      12
Pressure Angle      :      14.5 deg
Number of Threads      :      1
Direction of Rotation      :      Right Hand
Number of Teeth      :      60
Pitch Diameter      :      5 in
Bore Diameter      :      0.625 to 0.9385 in
Face Width      :      1/2 in
Material      :      Cast Iron
