Purvis Industries

Martin
Email Print

W10D

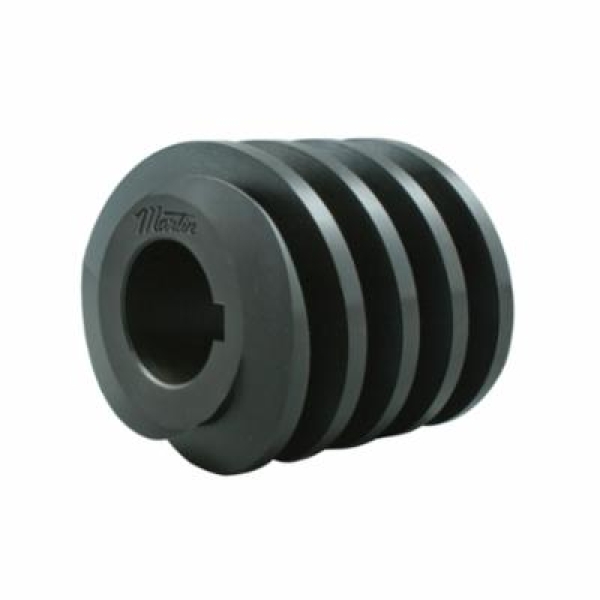

Martin W10D Bored-to-Size Helix Angle Worm, 10 Diametral Pitch, 14.5 deg Pressure Angle, Double Threads, Right Hand Rotation, 1-1/4 in Dia Pitch, 3/4 in Dia Bore, 1-3/8 in W Face, 9 deg Lead Angle, Steel

  • Item#: W10D
  • Mfr#: W10D
  • UPC: 697950050805
    • Commercial Class Gear. AGMA 6-8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Worms and worm gears are used to power right angle, nonintersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.

Martin Helix Angle Worm, Bored-to-Size, 3/4 in Bore, 1.45 in OD, Double Threads, 10 Diametral Pitch, 1-1/4 in Pitch Diameter, 1-3/8 in Face Width, 9 deg Lead Angle, Right Hand Direction of Rotation, 1 in Diameter Hub, 1/2 in Hub Projection, 1-3/4 in Overall Length, 14.5 deg Pressure Angle, Steel

SPECIFICATIONS

Hub Diameter      :      1 in
Hub Projection      :      1/2 in
Outside Diameter      :      1.45 in
Overall Length      :      1-3/4 in
Type      :      Bored-to-Size
Diametral Pitch      :      10
Pressure Angle      :      14.5 deg
Number of Threads      :      Double
Direction of Rotation      :      Right Hand
Pitch Diameter      :      1-1/4 in
Bore Diameter      :      3/4 in
Face Width      :      1-3/8 in
Lead Angle      :      9 deg
Material      :      Steel

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_W1020_Catalog.pdf
