TS414

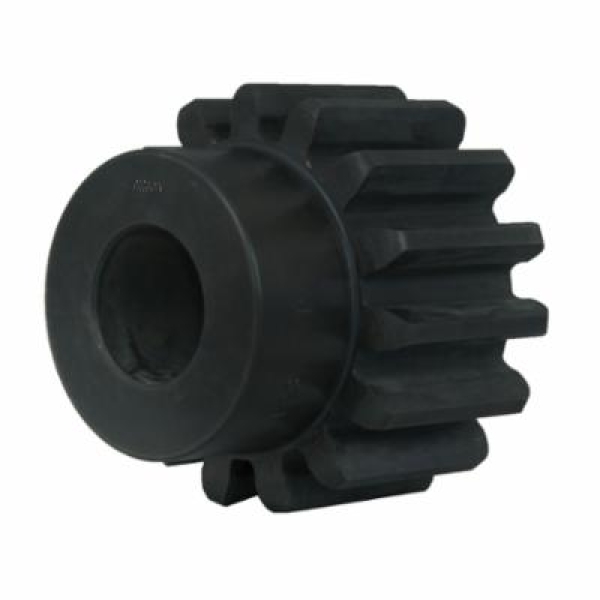

Martin TS414 External Tooth Reborable Stock Spur Gear, 4 Diametral Pitch, 20 deg Pressure Angle, 3-1/2 in W Face, 14 Teeth, 3-1/2 in Dia Pitch, 1-1/8 to 1-3/4 in Dia Bore, Steel
- CP#:
- Item#: TS414
- Mfr#: TS414
- UPC: 697950263687
- Precise machining and processes ensure consistent finish and high quality
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 1-1/8 to 1-3/4 in Bore Dia, 4 in Outside Dia, 14 Teeth, 4 Diametral Pitch, 3-1/2 in, 3-1/2 in Face Width, Type B, 2.766 in Hub Dia, 7/8 in Hub Projection, 4-3/8 in Overall Length, 20 deg Pressure Angle, Steel
SPECIFICATIONS
| Hub Diameter | : | 2.766 in |
| Hub Projection | : | 7/8 in |
| Hub Type | : | Type B |
| Outside Diameter | : | 4 in |
| Overall Length | : | 4-3/8 in |
| Type | : | External Tooth Reborable |
| Diametral Pitch | : | 4 |
| Pressure Angle | : | 20 deg |
| Face Width | : | 3-1/2 in |
| Number of Teeth | : | 14 |
| Pitch Diameter | : | 3-1/2 in |
| Bore Diameter | : | 1-1/8 to 1-3/4 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S1011_Catalog.pdf
