TS2014

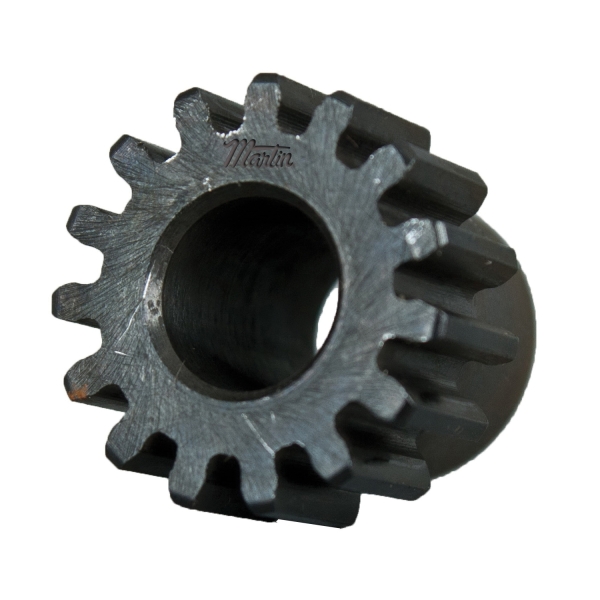

Martin TS2014 Reboreable Stock Spur Gear, 20 Diametral Pitch, 20 deg Pressure Angle, 1/2 in W Face, 14 Teeth, 0.7 in Dia Pitch, 5/16 in Dia Bore, Steel
- CP#:
- Item#: TS2014
- Mfr#: TS2014
- UPC: 697950263489
- Manufactured of high carbon steel material
- Precise machining and processes ensure consistent finish and high quality
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, Reboreable, 5/16 in Bore Dia, 0.8 in Outside Dia, 14 Teeth, 20 Diametral Pitch, 0.7 in, 1/2 in Face Width, Type B, 0.5469 in Hub Dia, 0.438 in Hub Projection, 0.987 in Overall Length, 20 deg Pressure Angle, Steel
SPECIFICATIONS
| Hub Diameter | : | 0.5469 in |
| Hub Projection | : | 0.438 in |
| Hub Type | : | Type B |
| Outside Diameter | : | 0.8 in |
| Overall Length | : | 0.987 in |
| Type | : | Reboreable |
| Diametral Pitch | : | 20 |
| Pressure Angle | : | 20 deg |
| Face Width | : | 1/2 in |
| Number of Teeth | : | 14 |
| Pitch Diameter | : | 0.7 in |
| Bore Diameter | : | 5/16 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S311_Catalog.pdf -
Specification Sheet https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S311_Specification_Sheet.pdf
