TS1615

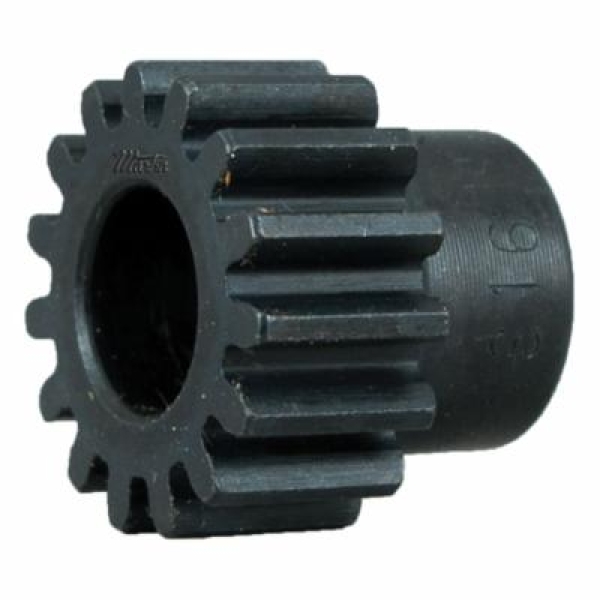

Martin TS1615 External Tooth Reborable Stock Spur Gear, 16 Diametral Pitch, 20 deg Pressure Angle, 3/4 in W Face, 15 Teeth, 0.938 in Dia Pitch, 3/8 to 1/2 in Dia Bore, Steel
- CP#:
- Item#: TS1615
- Mfr#: TS1615
- UPC: 697950263281
- Precise machining and processes ensure consistent finish and high quality
- Commercial Class Gear. AGMA 6-8
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 3/8 to 1/2 in Bore Dia, 1.063 in Outside Dia, 15 Teeth, 16 Diametral Pitch, 0.938 in, 3/4 in Face Width, Type B, 3/4 in Hub Dia, 1/2 in Hub Projection, 1-1/4 in Overall Length, 20 deg Pressure Angle, Steel
SPECIFICATIONS
| Hub Diameter | : | 3/4 in |
| Hub Projection | : | 1/2 in |
| Hub Type | : | Type B |
| Outside Diameter | : | 1.063 in |
| Overall Length | : | 1-1/4 in |
| Type | : | External Tooth Reborable |
| Diametral Pitch | : | 16 |
| Pressure Angle | : | 20 deg |
| Face Width | : | 3/4 in |
| Number of Teeth | : | 15 |
| Pitch Diameter | : | 0.938 in |
| Bore Diameter | : | 3/8 to 1/2 in |
| Material | : | Steel |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_S1011_Catalog.pdf
