TR6X4

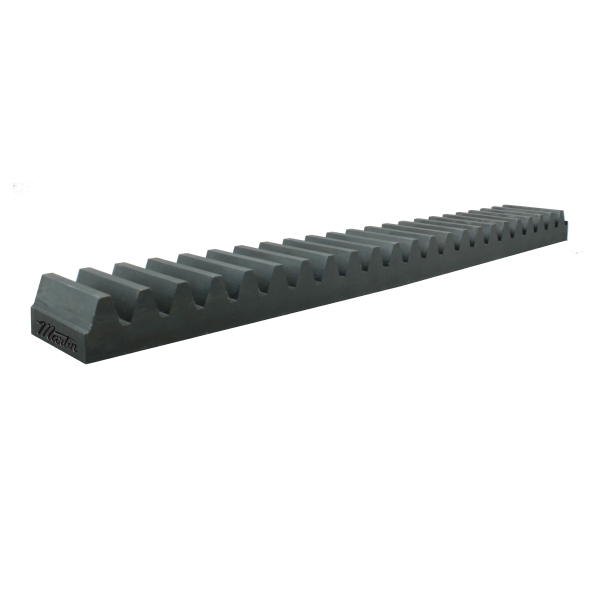

Martin TR6X4 Standard Face Gear Rack, 6 Diametral Pitch, 20 deg Pressure Angle, 1-1/2 in W Face, 48 in OAL, 1.333 in, Steel

  • Item#: TR6X4
  • Mfr#: TR6X4
  • UPC: 697950059211
    • To be used with spur gear pinions
    • Precise machining and processes ensure consistent finish and high quality
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading

DESCRIPTION

Martin rack is made from low carbon cold drawn steel. It is available in 14-1/2 deg and 20 deg pressure angle in 2, 4, and 6 foot lengths. Allowance is made for cutting and machining. Pinions to run with the rack may be selected from the spur gear section of the catalog. Special rack can be supplied in other materials, sizes, and pitches. Each Martin facility can mill and match rack for longer continuous runs.

Martin Gear Rack, Standard Face, 1-1/2 in Face Width, 6 Diametral Pitch, 1.333 in Pitch Line to Back, 48 in Overall Length, 1-1/2 in Overall Thickness, 20 deg Pressure Angle, Steel

SPECIFICATIONS

Overall Thickness      :      1-1/2 in
Type      :      Standard Face
Diametral Pitch      :      6
Pressure Angle      :      20 deg
Face Width      :      1-1/2 in
Overall Length      :      48 in
Pitch Line to Back      :      1.333 in
Material      :      Steel

DOCUMENTS

  • pdf
    Catalog     https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/Martin_R16X4_Catalog.pdf
