TEB4R

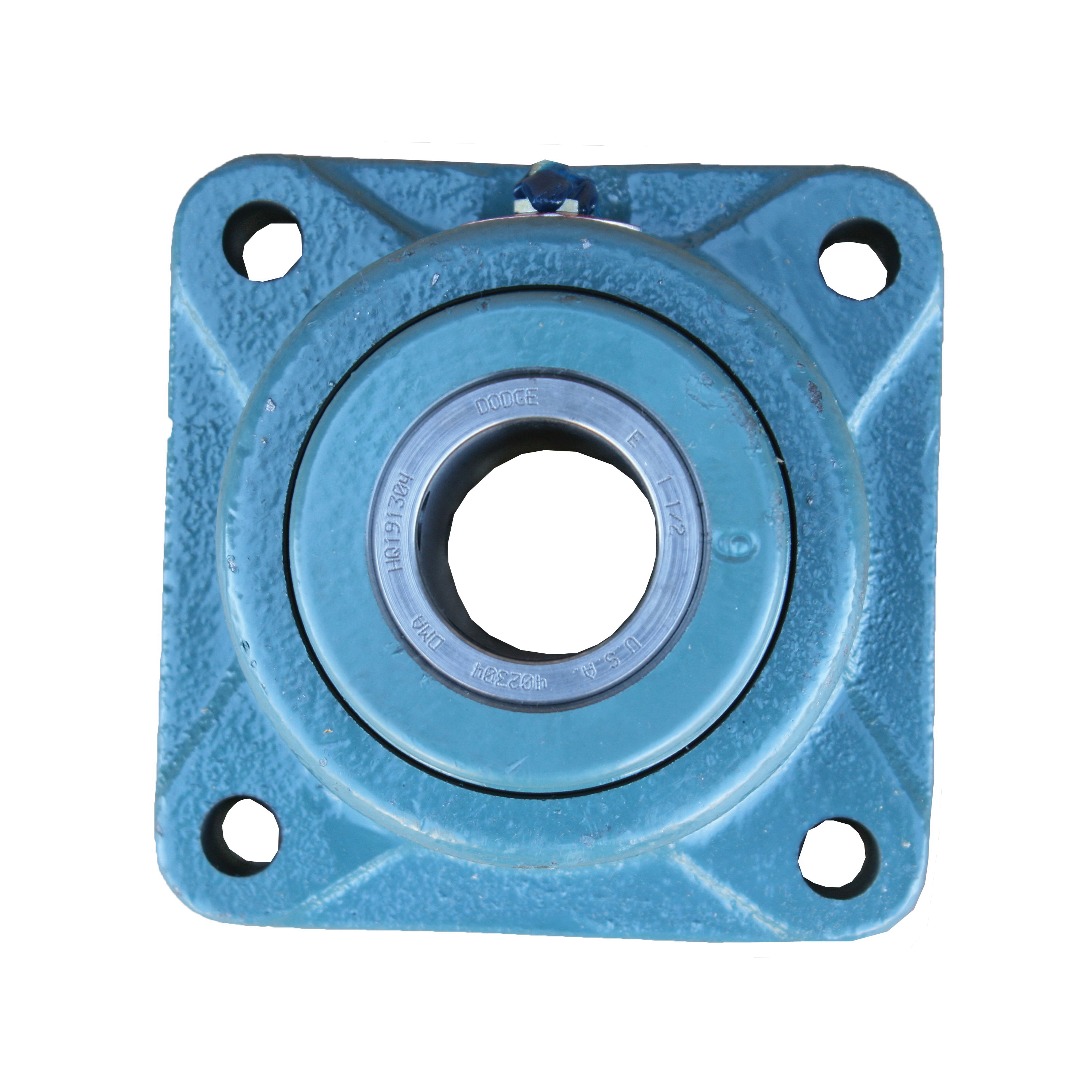

Martin TEB4R Non Expansion Square Roller Bearing Flange Unit, 2 in Dia Bore, 4-3/8 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 5-5/8 in OAL/Dia
- CP#:
- Item#: TEB4R
- Mfr#: TEB4R
- UPC: 697950082998
- Roller bearing, Ball bearing, Bronze sleeved to be use with standard trough end
- Min. Order Qty: 1
- Qty. Interval: 1
DESCRIPTION
The roller bearing flange unit is manufactured with a cast iron housing which protects it from wear. The cylindrical shape of the roller bearing reduces the overall pressure on the bearing and increases weight carrying capabilities. This precision bearings durability and ability to handle up to 3 deg of total misalignment ensures high performance in a variety of applications.
Martin Roller Bearing Flange Unit, Non Expansion Square, Series: TEB, 2 in Bore, 4-3/8 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 5-5/8 in Overall Length/Diameter, 3-5/8 in Overall Depth, 5-5/8 in Overall Height, Uncoated
SPECIFICATIONS
| Bolt Center-to-Center Length | : | 4-3/8 in |
| Series | : | TEB |
| Finish | : | Uncoated |
| Flange Mounting Type | : | 4-Bolt |
| Overall Depth | : | 3-5/8 in |
| Overall Height | : | 5-5/8 in |
| Overall Length/Diameter | : | 5-5/8 in |
DOCUMENTS
-
Catalog https://www.purvisindustries.com//ASSETS/DOCUMENTS/ITEMS/EN/https://econtent.adhq.com/dam/Original/555/Martin_CSFP2_Catalog.pdf
